• RE-201D mini rotary evaporator

RE-201D mini rotary evaporator

RE-201D is a type of small rotary evaporator,It has a mini appearance and easy to move and operate, it is very suitable for laboratory use.

Features of small rotary evaporator:

RE-201D RE-301 RE-501 samll rotary evaporator is our company's direct sales rotary evaporator. It is cheap, easy to operate, stable in quality, economical and practical. It is used for separation, crystallization, drying, Important equipment for purification and other operations.

Advantages of mini rotary evaporator:

1. ce, iso certified product patent certificate.

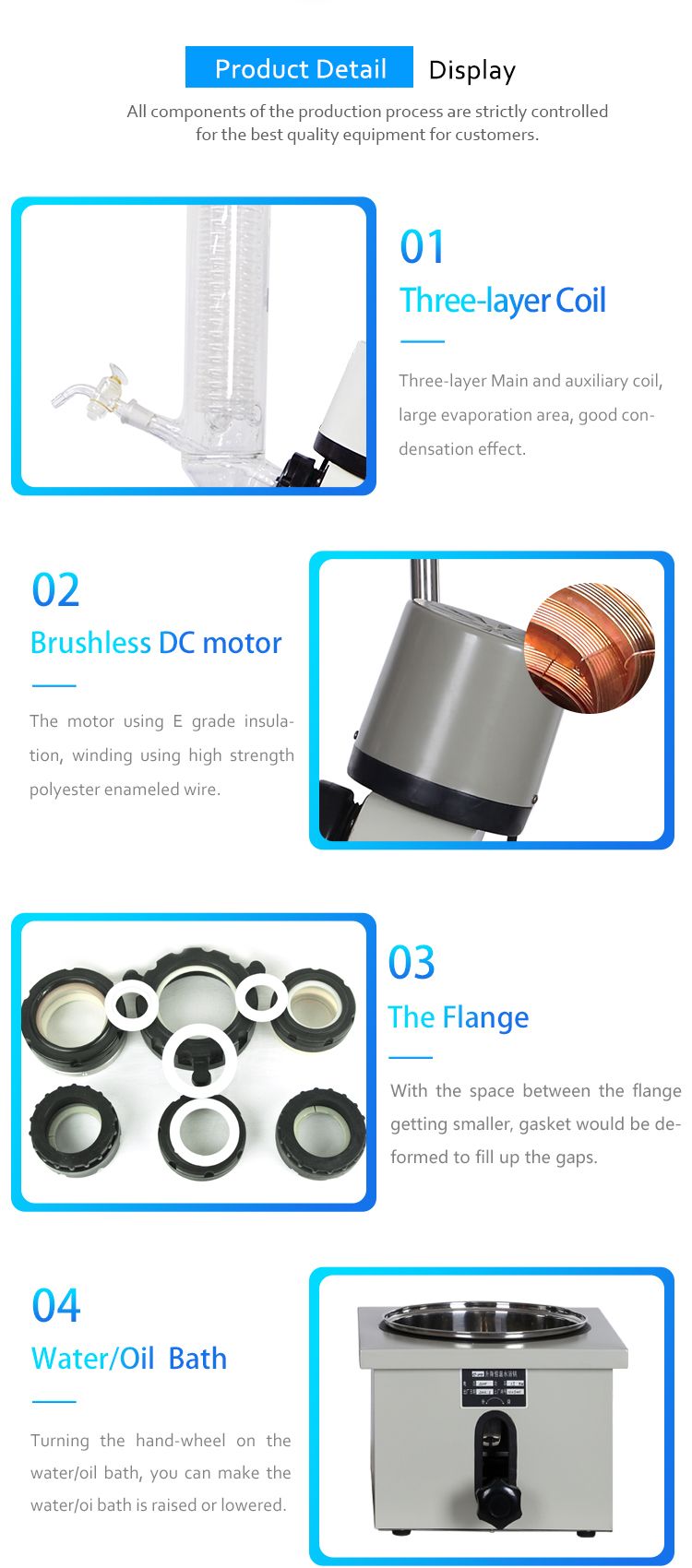

2. Beautiful appearance, small and light, top-rotating seal, using PTFE and fluorine rubber compound sealing structure, good sealing performance, firmness, strong corrosion resistance, and good vacuum.

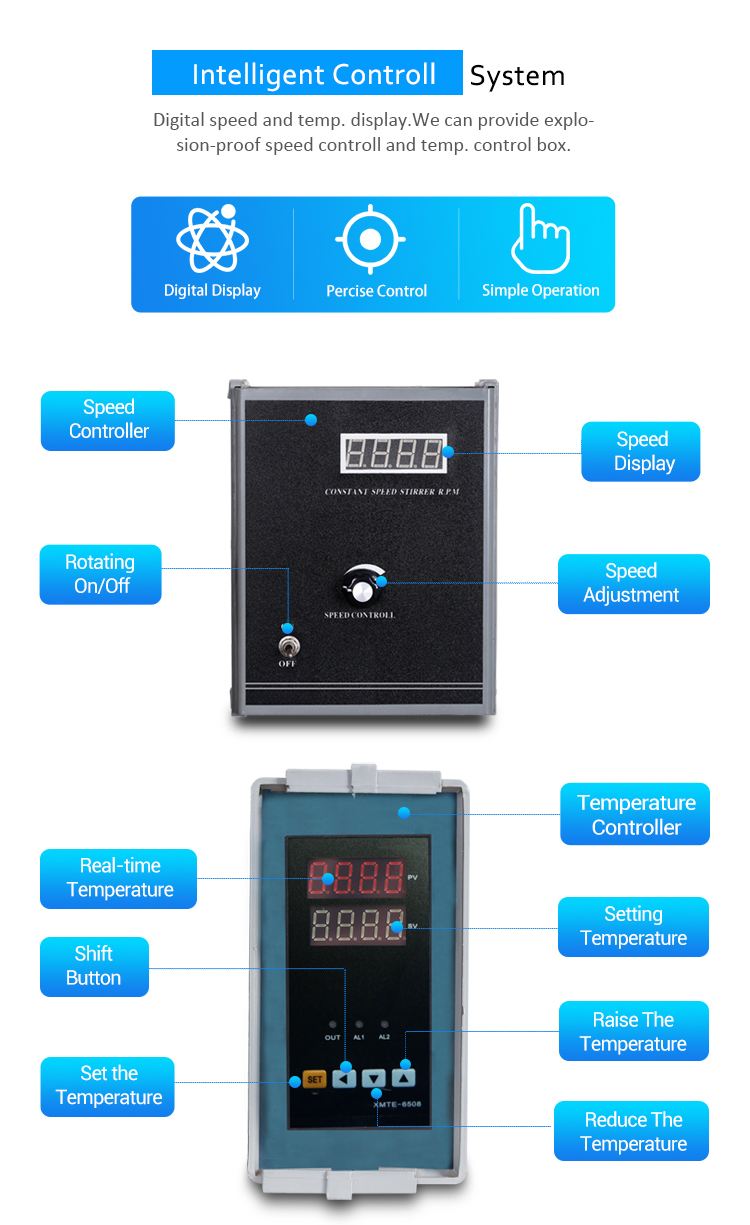

3. Manual lifting, high stability, knob button adjustment, digital display, convenient operation.

4.1°c-100°c temperature adjustment, 0-120 (r/m) speed adjustment, to meet various needs of laboratory instruments.

5. This type of rotary evaporator uses high-quality high borosilicate glass, heat-resistant and shock-resistant, and not easy to break.

6. The motor and circuit adopt imported products, and can be upgraded to explosion-proof, safer and longer service life.

2l small rotary evaporator

2l mini rotary evaporator

RE-201D small rotary evaporator



After-sales service:

1. Provide targeted installation videos;

2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;

3. After the expiration of the warranty period, the products sold by our company enjoy lifetime warranty repairs, and we only charge the cost price for replacing the standard parts and seals of the product;

4. The technicians put forward reasonable suggestions based on the use of the product, and assist the customer to choose the appropriate model;

5. Provide 24-hour technical consultation response.

Grouped equipment:

RE-201D: DLSB-5/10 low-temperature coolant circulating pump and SHZ-D (Ⅲ) circulating water vacuum pump

RE-301: DLSB-5/10 low-temperature coolant circulating pump and SHZ-D (Ⅲ) circulating water vacuum pump

RE-501: DLSB-10/10 low-temperature coolant circulating pump and SHZ-D (Ⅲ) circulating water vacuum pump

FAQ:

Is there any noise or noise in the small rotary evaporator?

It may be that the sealing ring is worn out, just replace it with a new one; it may also be that the internal gear is worn out, the driving part is lack of oil, or the motor is malfunctioning. In this case, stop using it immediately and contact the manufacturer or repairer.

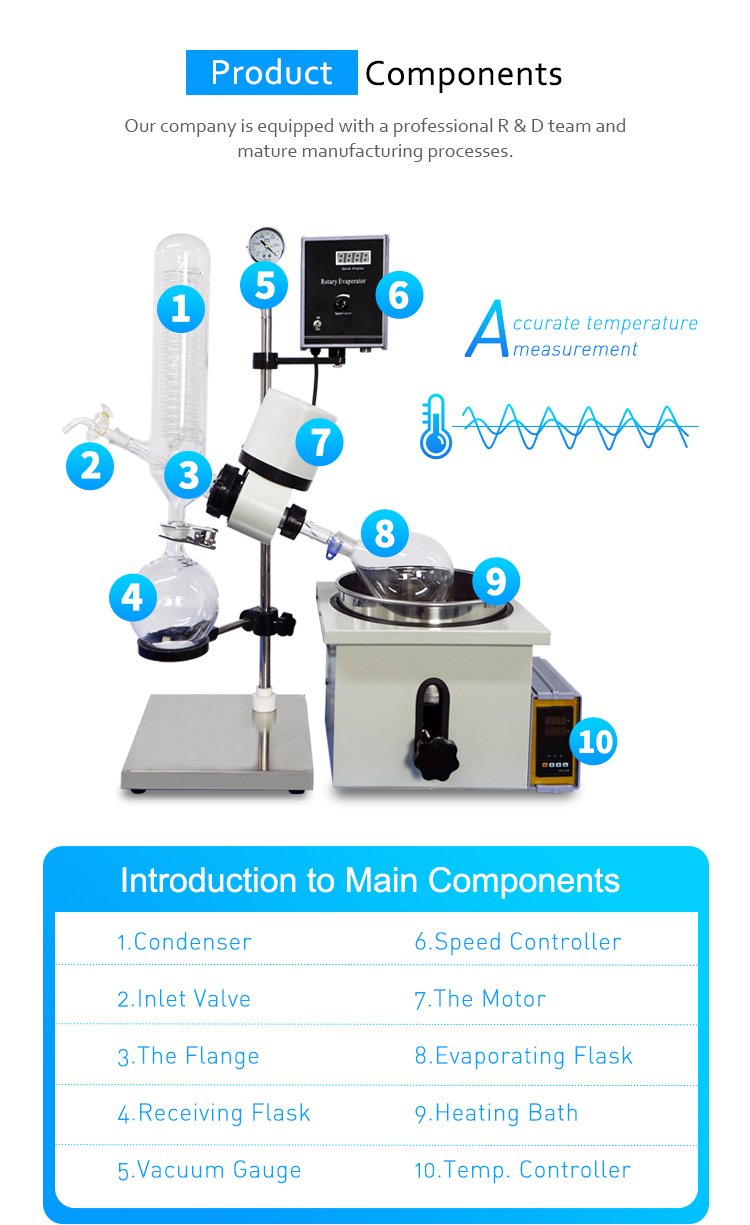

What are the components of a mini rotary evaporator?

Glass part, water bath part, sealing part, motor part.



What are the accessories for the glass part of the small rotary evaporator?

Condenser, rotating bottle, receiving bottle, four-way bottle, feeding piston (with PTFE tube), glass through shaft.



What type of condenser is the mini rotary evaporator? what's the effect?

Generally speaking, our mini rotary evaporator is equipped with a serpentine condenser, which has a faster cooling speed and a better cooling effect.



Why does the pressure of the small rotary evaporator leak and the vacuum is not good?

It may be that the glass rotating shaft is worn, the sealing ring is worn, the sealing ring is not installed properly, the sealing gasket of the decompression nozzle is aging, and the vacuum hose is aging. Just update the problematic parts.


Model

RE-201D

RE-301

RE-501

Evaporating FlaskL

2

3

5

     Receiving FlaskL

1

2

3

Rotating Motor(W)

40(Stepless speed regulation)

Rotating Speed(R/min)

0-120

WaterOilBath Power(W)

1200

1500

Temp Control Mode/Range

Intelligent digital/RT-399℃

Temp Resolution

±2℃

Evaporation Rate(L/H2O)

≥1

≥1.5

≥1.5

Max. Vacuum Degree

133pa(1.33mbar,1Torr,0.098Mpa)

Lifting Heightmm)

0-150

0-120

0-120

Water Bath Size

Φ24*15

Φ26*15

Φ28*17

Condenser

Vertical with charge pipe, large condenser,evaporating pipe

Lifting Mode

Oil bath Manual Lifting

Voltage

220V/ 50 HZ

Sealing Mode

PTFE,fluoro rubber sealing
