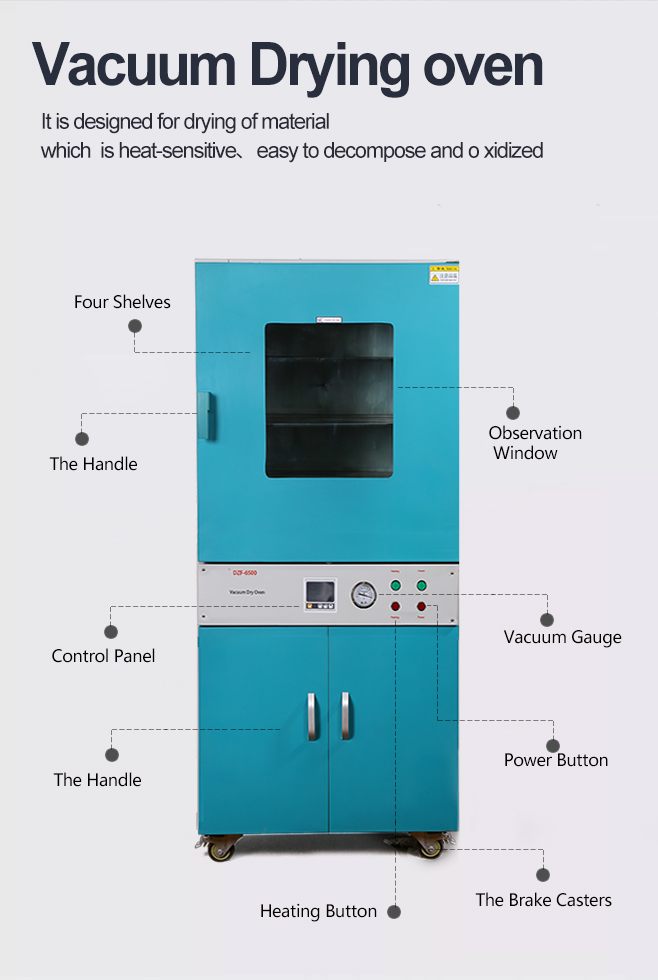

Advantages of vacuum drying oven:
The working room of the vacuum drying furnace uses high-quality steel plate and 304 stainless steel plate, which has strong corrosion resistance and can withstand high vacuum pressure.
Features of vacuum drying oven:
1. The inner tank is made of high-quality stainless steel plate, which is strengthened and durable.
2. Silicone sealing ring, high temperature resistance, long service life and not easy to aging.
3. It can be vacuumed continuously.
4. Manufactured by an honest enterprise, the products are durable, and the parameters are presented without reservation.
5. Beautiful appearance, simple structure and convenient operation.
After-sales service:
1. Provide targeted installation videos;
2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;
3. After the expiration of the warranty period, the products sold by our company enjoy lifetime warranty repairs, and we only charge the cost price for replacing the standard parts and seals of the product;
4. The technical staff puts forward reasonable suggestions according to the use of the product, and assists the customer to choose the appropriate model;
5. Provide 24-hour technical consultation response.
Grouped equipment:
Diaphragm Vacuum Pump
Rotary vane vacuum pump
FAQ:
1. How to maintain the vacuum drying oven?
The vacuum drying oven should be kept clean frequently, and the door glass should be wiped with a soft cotton cloth. If it is not used for a long time, neutral grease or petroleum jelly should be applied to the electroplated parts to prevent corrosion, and a plastic film dust cover should be placed in a dry room. , So as not to affect the use of electrical devices due to moisture.
2. How to maintain the vacuum drying oven?
When it is not necessary, please do not open the side door at will to avoid damage to the electrical system. The shell of the vacuum drying oven must be effectively grounded to ensure safe use. When the vacuum box does not need to be continuously pumped, the vacuum valve should be closed first, and then the vacuum pump power supply, otherwise the vacuum pump oil will be poured into the box. Vacuum pump oil should be replaced frequently.
3. What are the environmental requirements for the use of the vacuum drying oven?
Temperature: 5~40℃, relative humidity: ≤85%RH, there is no strong vibration and corrosive gas around.

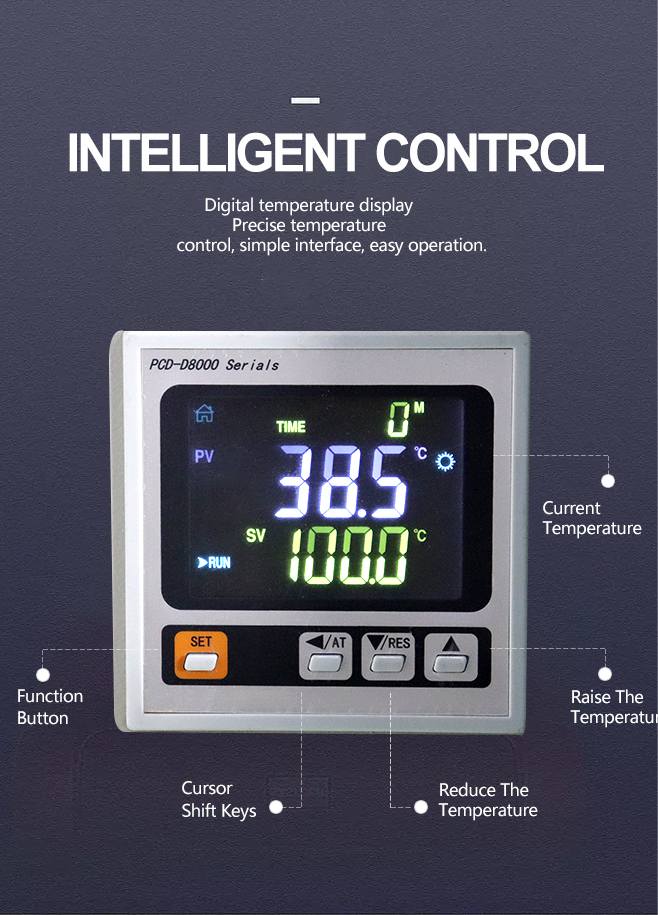

4. How to set the temperature of the vacuum drying oven?
In the heat-resistant range of the material, the higher the temperature, the better the drying effect.
Model | DZF-6500 |
Volume(L) | 40L |
Power | RT+10~200°C |
Shell Material | Spray-paint |
Max. Vacuum Degree | 0.098 Mpa |
Liner Material | 304 Stainless Steel |
Temp. Stability | ±1.0°C |
Input Power (W) | 2800 |
Temp. Analysis | 0.1°C |
Chamber Capacity (L) | 215 |
Inner Dimension(mm) | 630*810*845 |

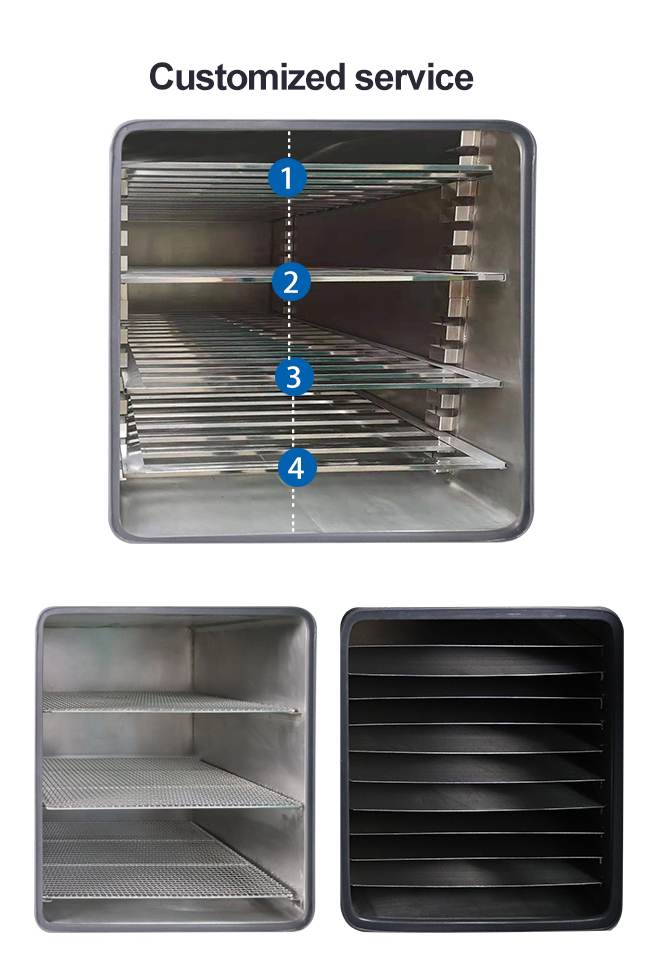

Shelves (Pcs) | 4 |
Optional Configuration | Explosion-proof |
Time Range | 1~9999 min |
