Advantages of vacuum drying oven:
The vacuum drying oven is particularly suitable for fast and efficient drying of heat-sensitive, easily decomposable, easily oxidized substances and complex components.
Features of vacuum drying oven:
1. The tightness of the closing of the cabinet door can be adjusted to ensure high vacuum in the cabinet.
2. Intelligent digital display temperature setting, high precision.
3. The oven adopts jacketed vacuum glass door. The indoor temperature can be effectively maintained, and the material reaction can also be observed directly.
4. The product shell is sprayed with environmentally friendly metal paint, and the overall design is beautiful and generous.
5. Under vacuum and inert conditions, the possibility of oxide explosion when exposed to heat is completely eliminated, making it safer.
After-sales service:
1. Provide targeted installation videos;
2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;
3. After the expiration of the warranty period, the products sold by our company enjoy lifetime warranty repairs, and we only charge the cost price for replacing the standard parts and seals of the product;
4. The technicians put forward reasonable suggestions based on the use of the product, and assist the customer to choose the appropriate model;
5. Provide 24-hour technical consultation response.
Grouped equipment:
Diaphragm Vacuum Pump
Rotary vane vacuum pump
FAQ:
1. What is the time setting of the vacuum drying oven?
Time setting range: 0～9999 minutes (hours); timing error:
2. How to heat the vacuum drying oven?

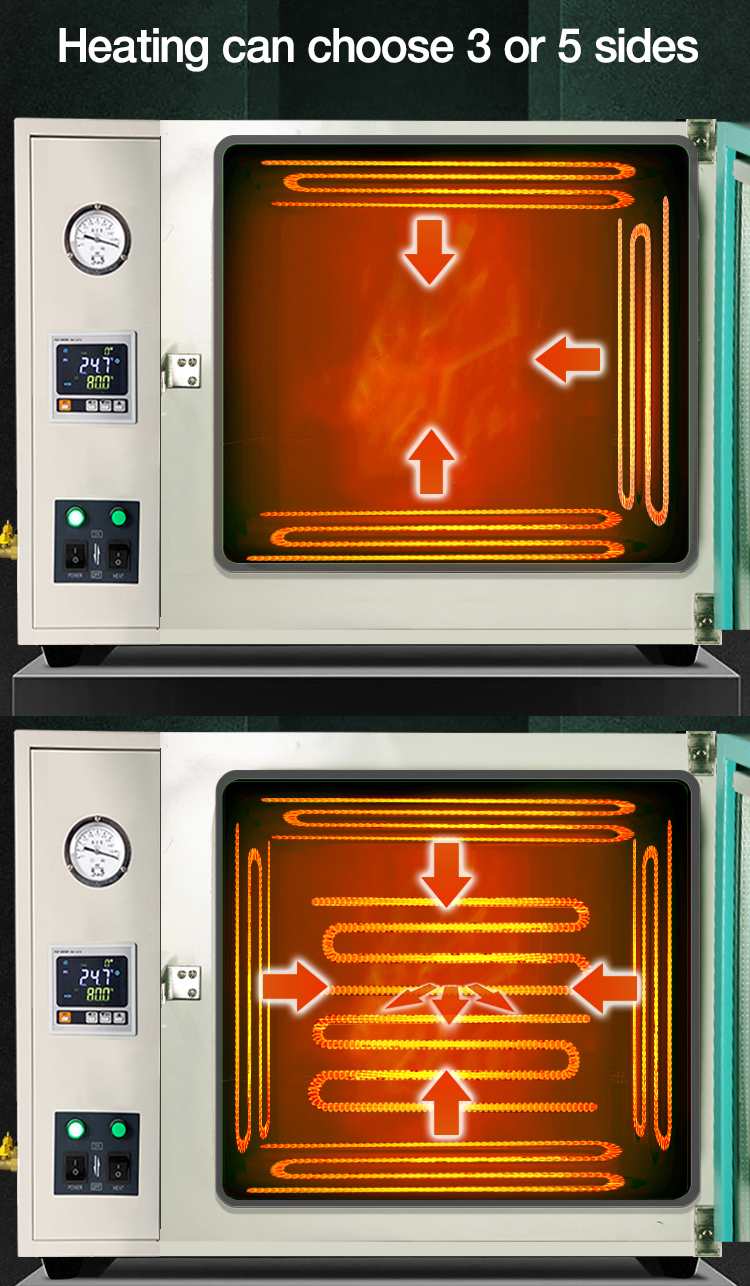

There are many heating electron tubes around the box to keep the high temperature.
3. How to use the vacuum drying oven?
Put the items to be dried into the box, close the air release valve, open the vacuum valve, and turn on the power to start vacuuming. Turn on the power switch of the drying oven and set the temperature. After drying, turn off the power of the drying box, open the vent valve, release the vacuum state in the box, and then open the door to take out the items.
4. What are the box structure of the vacuum drying oven?

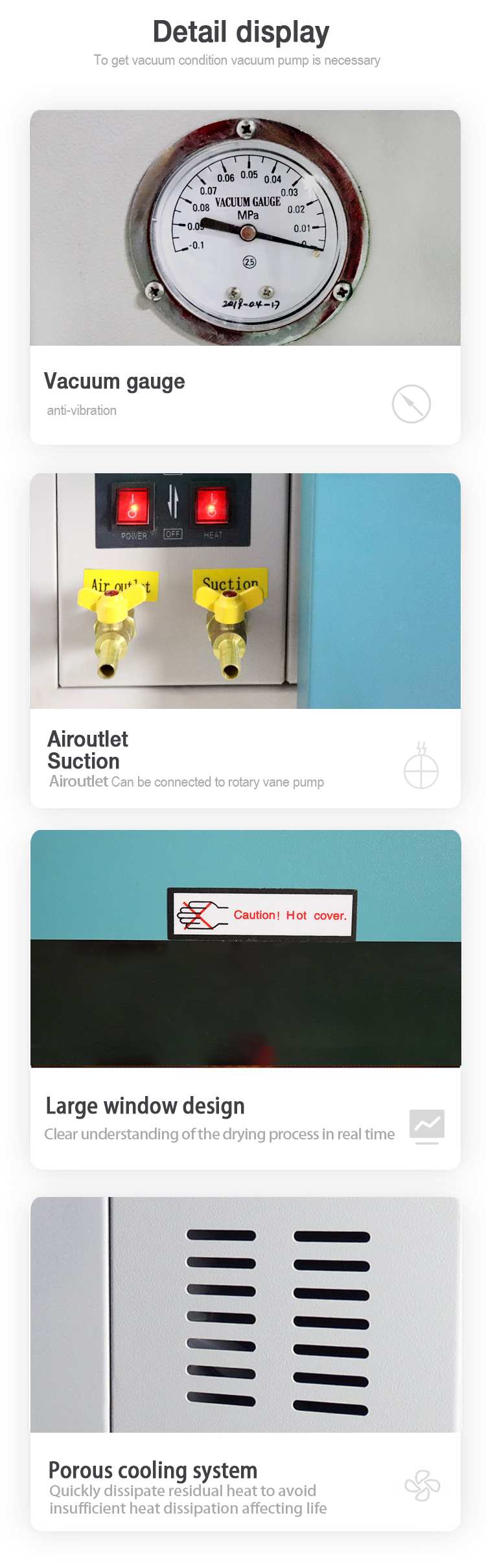

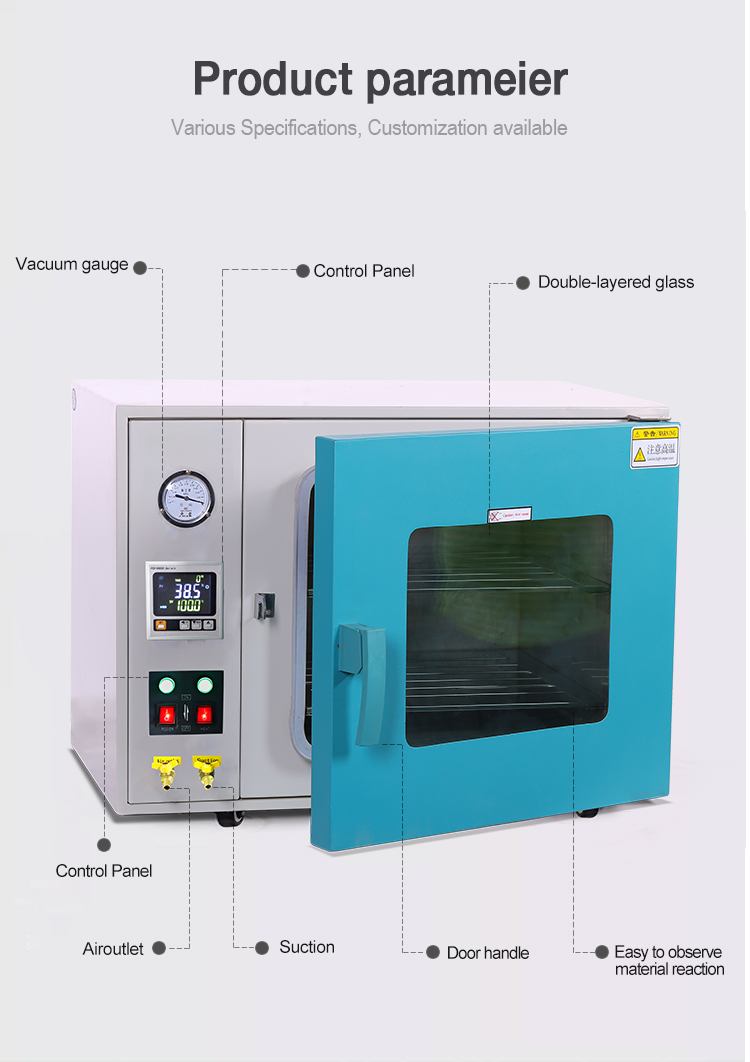

Intelligent LCD temperature controller, inert gas inlet valve, vacuum gauge, cabinet.
Model | DZF-6090 |
Power Supply(V/Hz) | 220/50 |
Shell Material | Spray-paint Anti-corrosion |
Liner Material | 304 Stainless Steel |
Temp. Range(°C) | RT+10~200(250) |
Max. Vacuum Degree(Mpa) | 0.098 |
Temp. Stability(°C) | ±1.0 |
Temp. Analysis(°C) | 0.1 |
Working Temp.(°C) | +5~40 |
Input Power (W) | 2000 |
Chamber Capacity (L) | 90 |
Inner Dimension (W*D*H,mm) | 450*450*450 |
Overall Dimension (W*D*H,mm) | 610*680*710 |

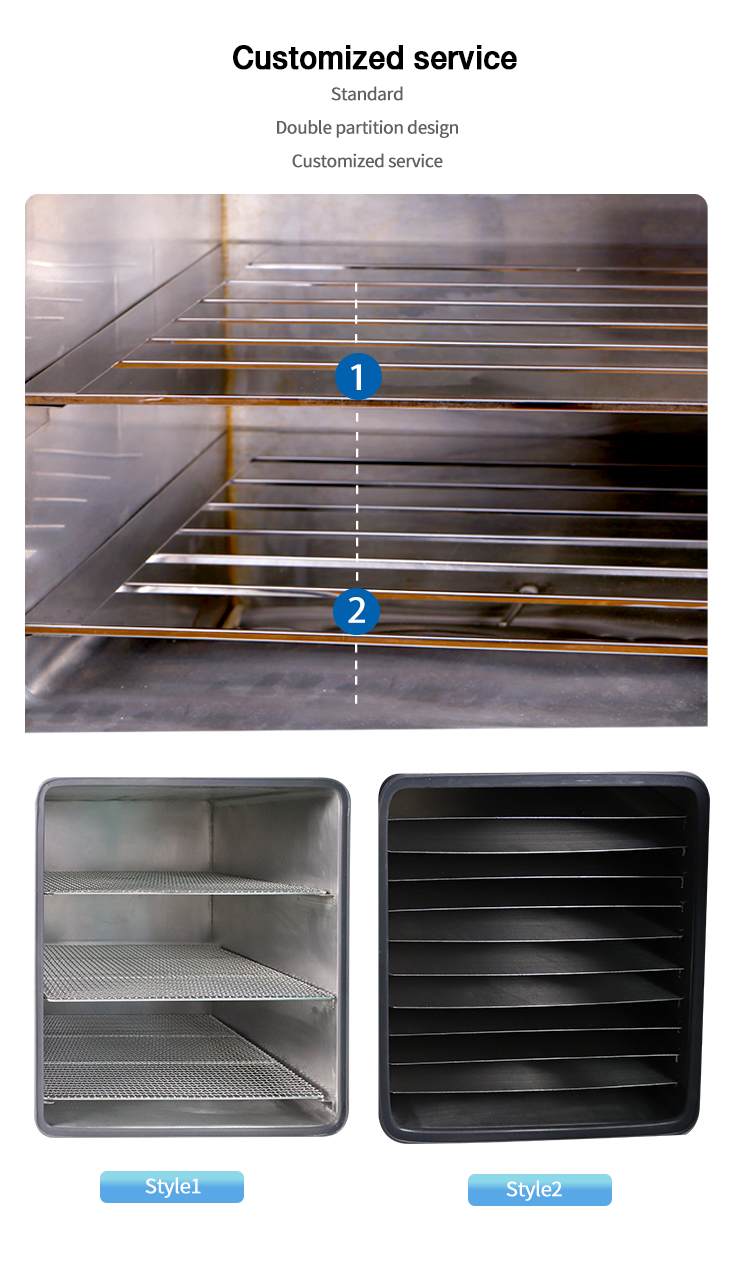

Shelves (Pcs) | 2 |
Time Range(min) | 1~9999 |
Optional Configuration | Explosion-proof |
