Advantages of vacuum drying oven:
Vacuum drying ovens are widely used in research applications such as biochemistry, chemical pharmacy, medical and health, agricultural research, environmental protection, etc., for powder drying, baking, and disinfection and sterilization of various glass containers.
Features of vacuum drying oven:
1. Vacuum drying can effectively shorten the drying time.
2. Under vacuum conditions, powdery materials will not be blown (moved) by flowing air.
3. The circuit wiring is reasonable, safe and reliable.
4. Convenient operation and good airtight performance.
5. The maximum vacuum degree is 0.098Mpa.
6. The vacuum drying oven can be easily used for heat-sensitive substances, because the vacuum environment greatly reduces the boiling point of the liquid that needs to be driven off.
After-sales service:
1. Provide targeted installation videos;
2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;
3. After the expiration of the warranty period, the products sold by our company enjoy lifetime warranty repairs, and we only charge the cost price for replacing the standard parts and seals of the product;
4. The technical staff puts forward reasonable suggestions according to the use of the product, and assists the customer to choose the appropriate model;
5. Provide 24-hour technical consultation response.
Grouped equipment:
Diaphragm Vacuum Pump
Rotary vane vacuum pump
FAQ:
1. What are the box structures of the vacuum drying oven?

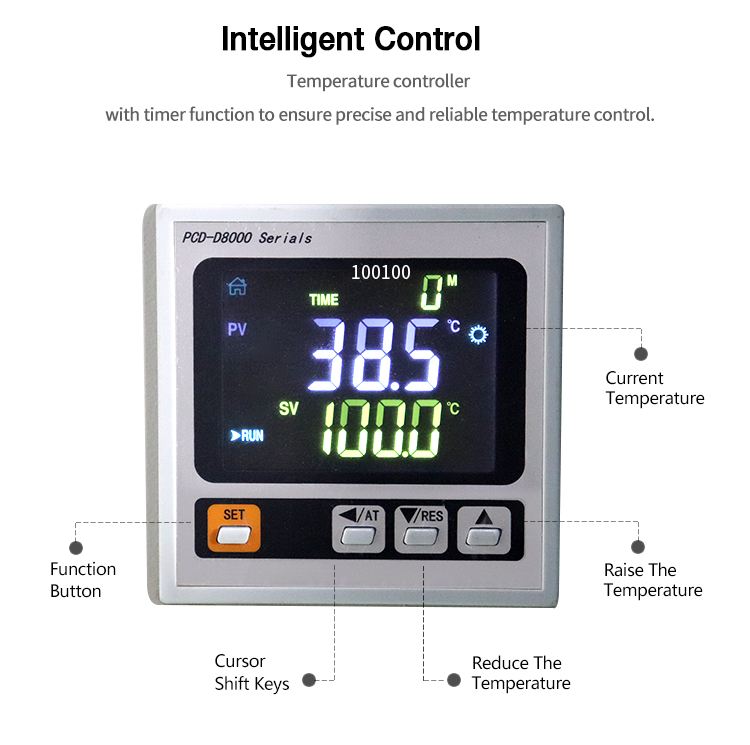

Intelligent LCD temperature controller, inert gas inlet valve, vacuum gauge, cabinet.
2. What is the working process of the vacuum drying oven?
On the one hand, it provides heat to the inside of the box, on the other hand it vacuums, and the moisture of the material is drawn away by the vacuum pump to achieve the purpose of drying.
3. What kind of vacuum pump can be used for vacuum drying oven?
The laboratory vacuum drying oven produced by our company can be equipped with a rotary vane vacuum pump and a diaphragm pump. Please contact us for specific specifications.
4. How much is the vacuum drying oven?
You can contact us and we will provide quotations for different models according to your needs.
Model | DZF-6050 |
Power Supply(V/Hz) | 220/50 |
Shell Material | Spray-paint Anti-corrosion |
Liner Material | 304 Stainless Steel |
Temp. Range(°C) | RT+10~200(250) |
Max. Vacuum Degree(Mpa) | 0.098 |
Temp. Stability(°C) | ±1.0 |
Temp. Analysis(°C) | 0.1 |
Working Temp.(°C) | +5~40 |
Input Power (W) | 1400 |
Chamber Capacity (L) | 55 |
Inner Dimension (W*D*H,mm) | 400*400*345 |
Overall Dimension (W*D*H,mm) | 710*580*530 |
Shelves (Pcs) | 2 |
Time Range(min) | 1~9999 |
Optional Configuration | Explosion-proof |
