Advantages of high pressure stirred autoclave:

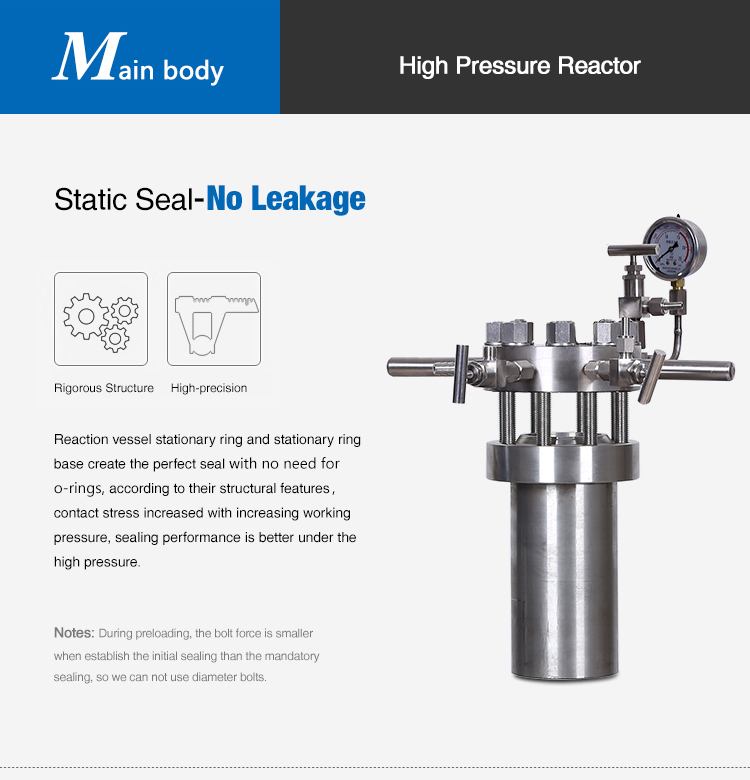

The CJF series high-pressure stirring kettle adopts a static sealing structure and a self-tuning intelligent digital temperature control device, which has high precision, simple operation and strong anti-interference ability.

Features of high pressure stirred autoclave:

1. Mechanical and connection structure: The connection structure is connected by a bolt structure or a quick-opening snap ring, the lid can be lifted, and the pot body can be upside down.

2. Stirring method: adopts a strong magnetic cylindrical rotating coupling structure, the stirring speed is 0~1000r/min, and the stirring capacity can be adjusted according to user needs.

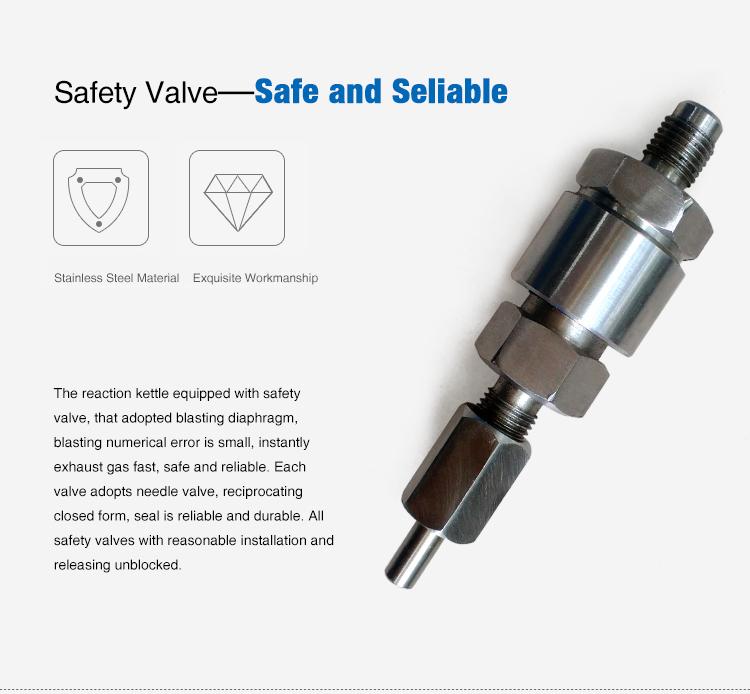

3. Safety: The reactor is equipped with a safety valve. The safety valve uses a ruptured diaphragm. The blasting value is small, the instantaneous exhaust speed is fast, and it is safe and reliable. Each valve of the reactor adopts a needle valve, which is closed back and forth. The seal is reliable and durable. The installation of various valves is reasonable, the discharge is stable, and there is no dead angle.

4. Heating method: electric heating. Electric heating type, liquid heating type, electric heating and liquid heating type can also be provided according to customer needs.

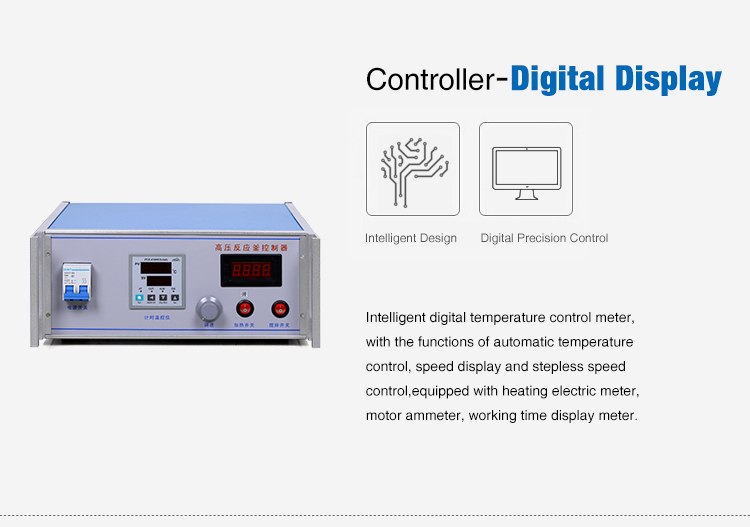

5. Control system: equipped with related intelligent control instrument, which adopts intelligent digital control instrument to collect and control the motor speed, reaction temperature and pressure in the pot, with high precision, simple operation and strong anti-interference ability.

6. Self-tuning intelligent digital temperature control device, stepless speed regulation, speed display.

After-sales service:

1. Provide targeted installation videos;

2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;

3. After the expiration of the warranty period, the products sold by our company enjoy lifetime warranty repairs, and we only charge the cost price for replacing the standard parts and seals of the product;

4. The technical staff puts forward reasonable suggestions according to the use of the product, and assists the customer to choose the appropriate model;

5. Provide 24-hour technical consultation response.

FAQ:

What is the working principle of CJF series high pressure stirred autoclave?

CJF series laboratory magnetic stirring reactor is a gas-liquid, liquid-liquid, liquid-solid or gas-liquid-solid three-phase chemical material. It is used in chemical reaction stirring reaction equipment to make various chemical materials under higher pressure and stirring. Carry out fully under vacuum and temperature to enhance mass and heat transfer.

What are the requirements for the working environment of the high pressure stirred autoclave?

Working environment: The ambient temperature is 0-50℃, the relative humidity is 30-85%, and the surrounding medium does not contain conductive dust or corrosive gas.

What are the heating methods of high pressure stirred autoclave?

Heating methods: electricity, steam, heat transfer oil, far infrared, water circulation, etc.

Main material selection of high pressure stirred autoclave:

Main material selection: stainless steel 321, 304, 316L, etc., titanium, nickel, zirconium, tantalum, Hastelloy, PTFE lining, etc.
