Advantages of Jacketed glass reactor:

S-80L S-100L double-layer glass reactor is a new type of frequency conversion speed-regulated double-layer glass reactor developed and produced by our company. It has more safety and easy-to-operate design. The double-layer glass reactor produced by our company is easy to operate, The appearance is beautiful and generous, and the structure is novel and practical. It is an ideal experiment and production equipment for biopharmaceutical and new material preparation.

Features of Jacketed glass reactor:

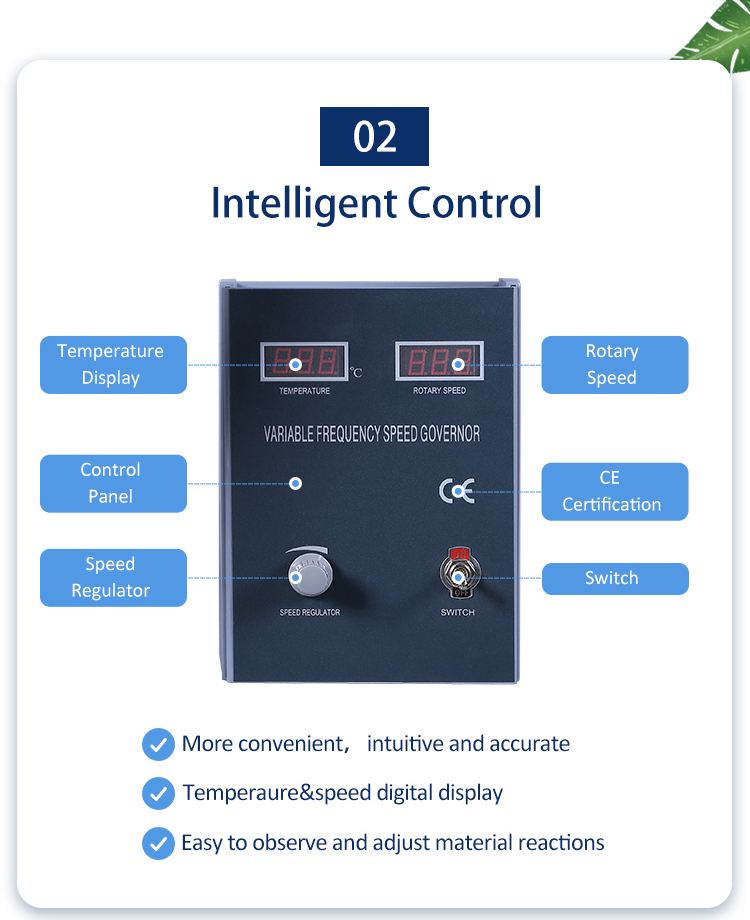

1. Brushless DC stirring motor, stepless speed regulation, LED display, digital display torque, temperature, time and speed.

2. The operation box is equipped with a standard 485 communication interface, which can realize data transmission.

3. Technical stirring bearing, to prevent the stirring rod from being worn and chipped, with good sealing effect and long service life.

4. Using Pt100 temperature sensor, high temperature control accuracy, SUS304 material, jacketed with PTFE tube, double anti-corrosion.

5. The professional PTFE sealing cover can stir at high speed under high vacuum.

6. The lower discharge port has a flange port and a PTFE valve. There is no dead angle in the container, and it can be disassembled, which is convenient for material discharge.

Easy to clean.

7. The support part of the kettle body is made of high-quality stainless steel pipes and cast aluminum materials, which are beautiful and generous, and the overall structure is stable.

Standard gears, no backlash, wear-resistant.

After-sales service:

1. Provide targeted installation videos;

2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;

3. After the expiration of the warranty period, the products sold by our company enjoy lifetime warranty repairs, and we only charge the cost price for replacing the standard parts and seals of the product;

4. The technicians put forward reasonable suggestions based on the use of the product, and assist the customer to choose the appropriate model;

5. Provide 24-hour technical consultation response.

Grouped equipment:

Circulating water vacuum pump

Low temperature coolant circulation pump

Circulating water (oil) bath

High and low temperature integrated machine

FAQ:

1. What are the disadvantages of the double-layer glass reactor?

The high temperature water bath of GYY series is needed for matching, and the cost and cost are relatively high.

2. How about the stability of the double-layer glass reactor?

The double-layer glass reactor adopts 304 stainless steel well-shaped frame, which is firmer and the overall mechanism is more stable.

3. What is the maximum temperature of the double-layer glass reactor?

Under normal circumstances, the high borosilicate glass can withstand more than 300 degrees Celsius, and the PTFE stirring rod can withstand about 200 degrees Celsius.

4. What materials are used for the components of the double-layer glass reactor?

The use of high borosilicate glass has good chemical properties, is resistant to strong acids and alkalis, and can withstand a wide temperature range.

5. What is the supporting equipment for the double-layer glass reactor for high temperature reaction?

High temperature circulating oil bath: in a circulating way, it provides heating source for double-layer kettle with precise temperature control

High and low temperature integrated machine: It has both heating and cooling functions, and provides heating and cooling sources for the double-layer kettle in a circular manner, and intelligent temperature control

6. What is the supporting equipment for the low-temperature reaction of the double-layer glass reactor?

High and low temperature integrated machine: It has both heating and cooling functions, and provides heating and cooling sources for the double-layer kettle in a circular manner, and intelligent temperature control

Low-temperature coolant circulating pump: refrigeration equipment, in a circulating manner, provides low-temperature cooling circulating water for the condensation system of the double-layer kettle, and the condensing medium is ethanol
