Advantages of Jacketed glass reactor:

S-10L S-20L S-30L S-50L double-layer glass reactor is a new type of frequency conversion speed-regulated double-layer glass reactor developed and produced by our company. It absorbs the advantages of similar products at home and abroad . The double-layer glass reactor produced by our company is easy to operate, The appearance is beautiful and generous, and the structure is novel and practical. It is an ideal experiment and production equipment for biopharmaceutical and new material preparation.

Features of Jacketed glass reactor:

1. The kettle body can be raised and lowered and can be rotated at 120°, which is convenient for use and cleaning.

2. The inlet and outlet of the jacket are connected with stainless steel hoses to eliminate the stress of the inlet and outlet.

3. Anti-corrosion discharge valve designed for side discharge without liquid accumulation.

4. The lockable caster structure facilitates the movement and positioning of the equipment.

5. The stirring shaft is made of stainless steel and adopts PTFE material, which is durable and pollution-free.

6. Standard gears, no backlash, wear-resistant.

7. Using GG17 high borosilicate glass, it has good chemical and physical properties.

8. Easily disassembled glass discharge valve, no dead corners, and liquid substances are easily released from the bottom.

After-sales service:

1. Provide targeted installation videos;

2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;

3. After the expiration of the warranty period, the products sold by our company enjoy lifetime warranty repairs, and we only charge the cost price for replacing the standard parts and seals of the product;

4. The technicians put forward reasonable suggestions based on the use of the product, and assist the customer to choose the appropriate model;

5. Provide 24-hour technical consultation response.

Grouped equipment:

Circulating water vacuum pump

Low temperature coolant circulation pump

Circulating water (oil) bath

High and low temperature integrated machine

FAQ:

1. What is the purpose of the double-layer glass reactor?

Under the set constant temperature condition, in the closed glass reactor, the stirring reaction can be carried out under normal pressure or negative pressure according to the use requirements, and it can do the reflux and distillation of the reaction solution. Ideal pilot and production equipment for synthesis of new materials.

2. What should be paid attention to when using double-layer glass reactor?

All glass parts must be cleaned before installation. Apply a small amount of vacuum silicone grease to each standard port, ball mill port and sealing surface to increase air tightness. Before installation, use, maintenance, and inspection, be sure to read all the contents of this manual and use it correctly. The power supply voltage must be consistent with the specifications of this instrument. High-speed operation is not suitable for no-load. The life of the electrical box is greatly affected by the surrounding temperature and humidity. Please keep the governor and motor dry. The equipment of the reactor is installed first, and then the equipment is operated and used by professional operators.

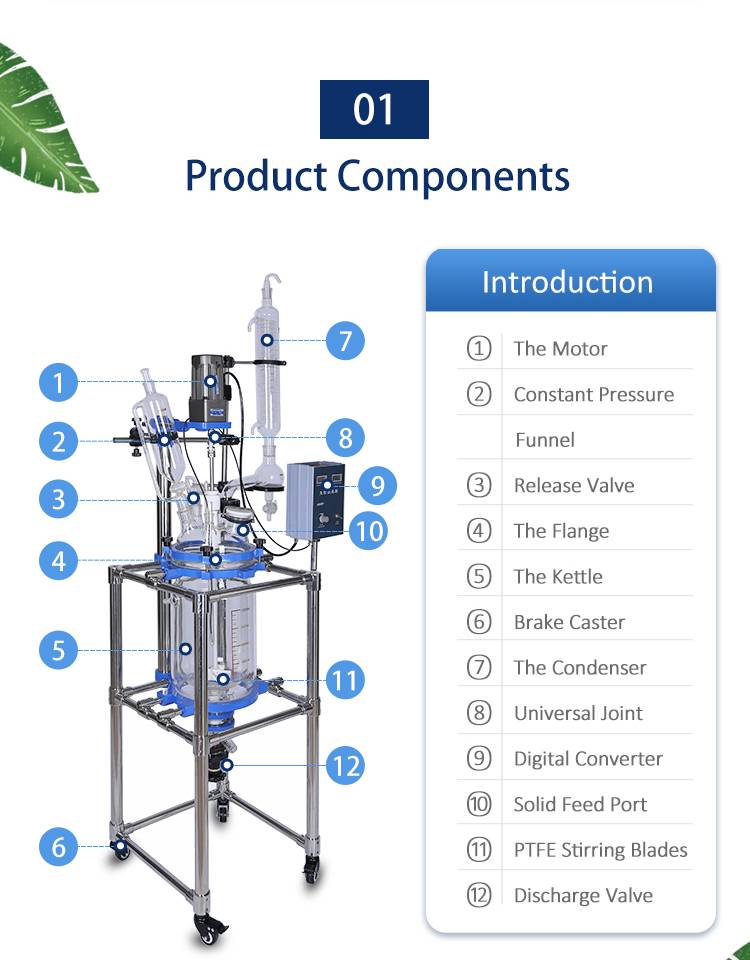

3. What are the components of the double-layer glass reactor?

Glass part, stirring part, sealing part, support bracket.

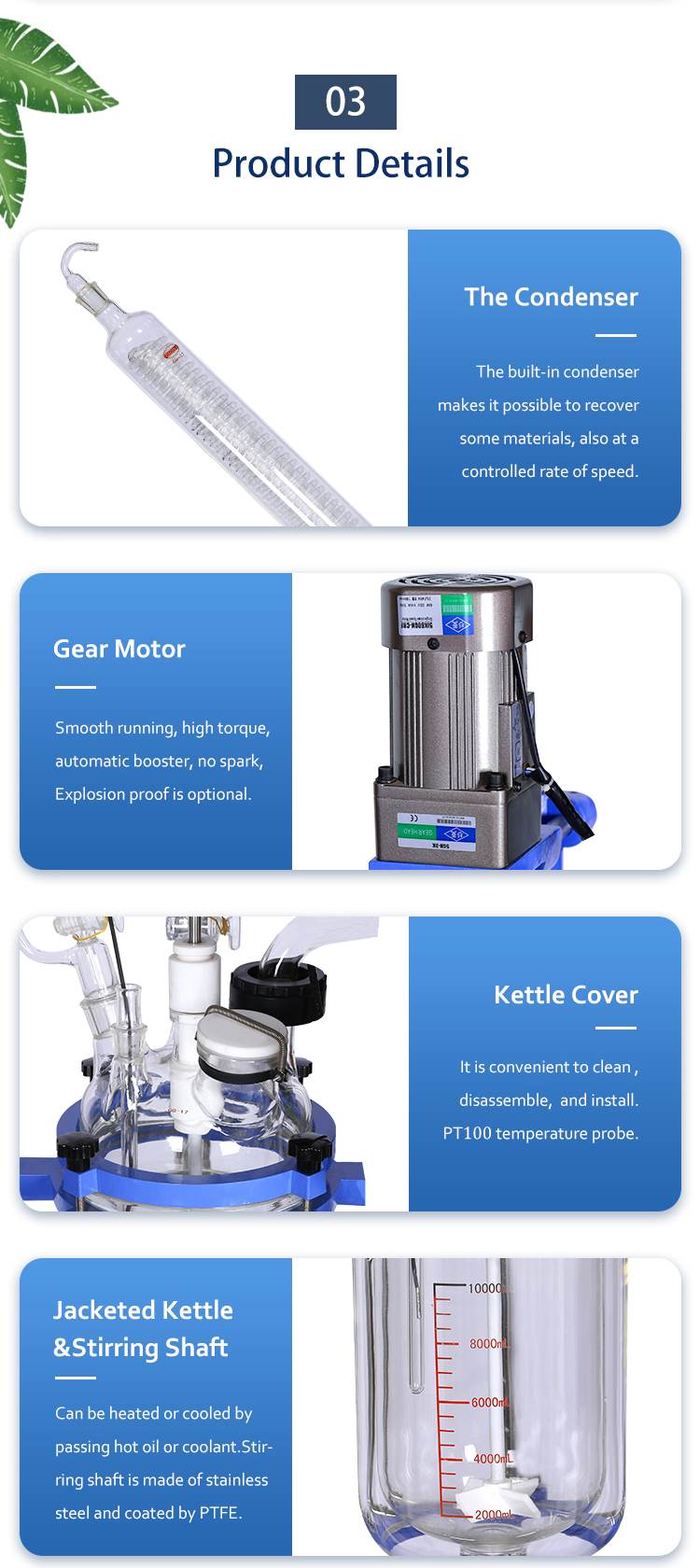

4. What are the accessories for the glass part of the double-layer glass reactor?

Double-layer kettle body, kettle cover, constant pressure dropping funnel, distillation elbow, serpentine condenser, thermometer sleeve, inlet and outlet valve, lower discharge valve, suction elbow, hollow plug.

5. What is the stirring speed of the double-layer glass reactor?

0～600rmp (up to 1300)
