Advantages of short-path distillation:

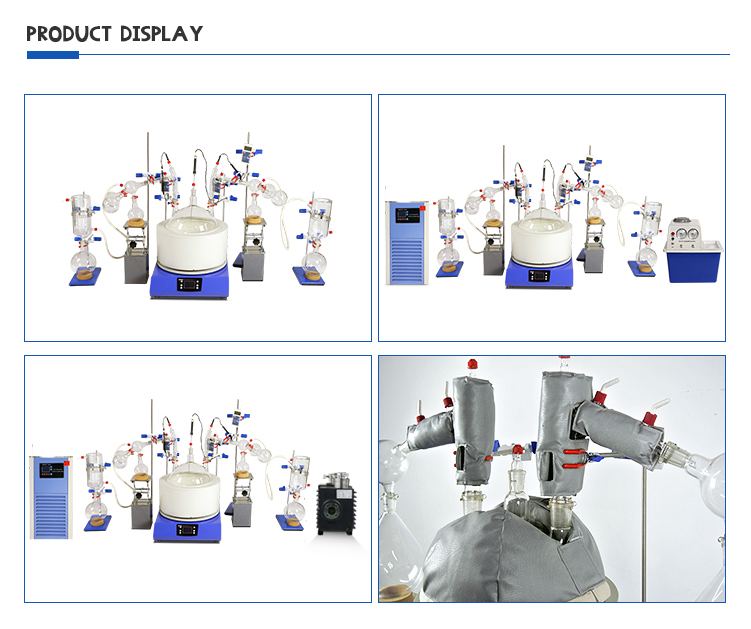

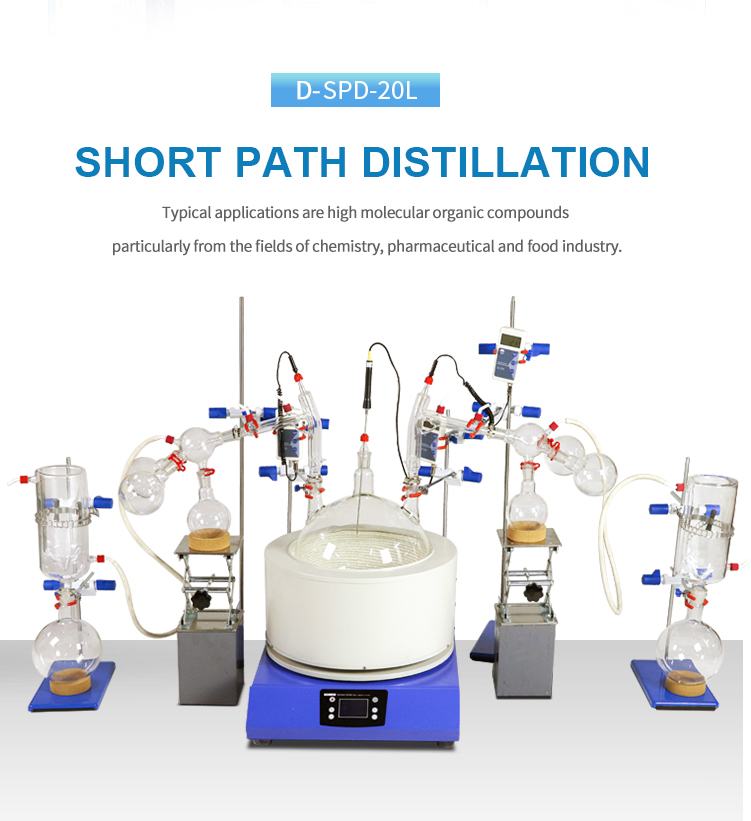

The short-path distillation with double condenser and double receiver is one of our short-path distillation series. It adopts high-precision transmission and mechanical seal design, and the equipment can operate stably for a long time.

Features of short path distillation:

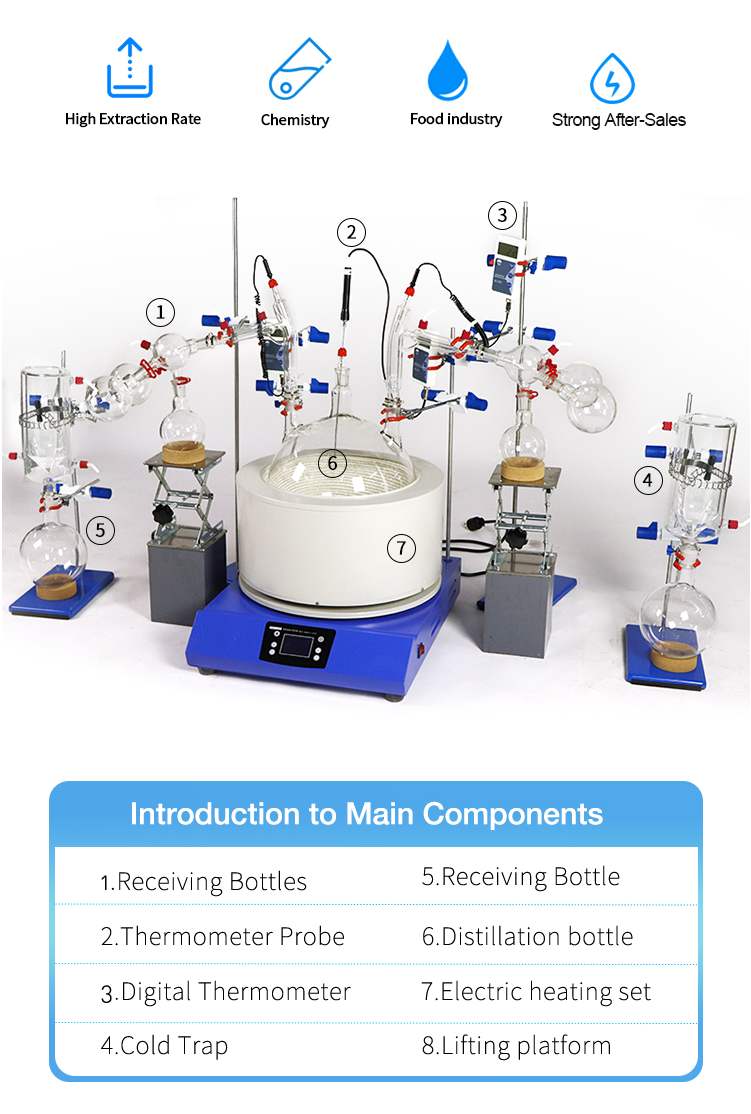

1. Double condenser and double receiver design.

2. Detachable, easy to replace parts.

3. Frosted port connection, good airtightness.

4. Detachable design, easy to replace.

5. The degree of vacuum in the distillation process is very high, which can reach below 0.1pa, and a higher degree of vacuum can also be obtained inside. Generally speaking, molecular distillation is carried out under very low pressure, so the material is not easily damaged by oxidation;

6.The distillate film is thin, the heat transfer efficiency is high, and the thickness is less than 0.5 mm;

After-sales service:

1. Provide targeted installation videos;

2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;

3. After the expiration of the warranty period, the products sold by our company enjoy lifetime warranty repairs, and we only charge the cost price for replacing the standard parts and seals of the product;

4. The technical staff puts forward reasonable suggestions according to the use of the product, and assists the customer to choose the appropriate model;

5. Provide 24-hour technical consultation response.

Grouped equipment:

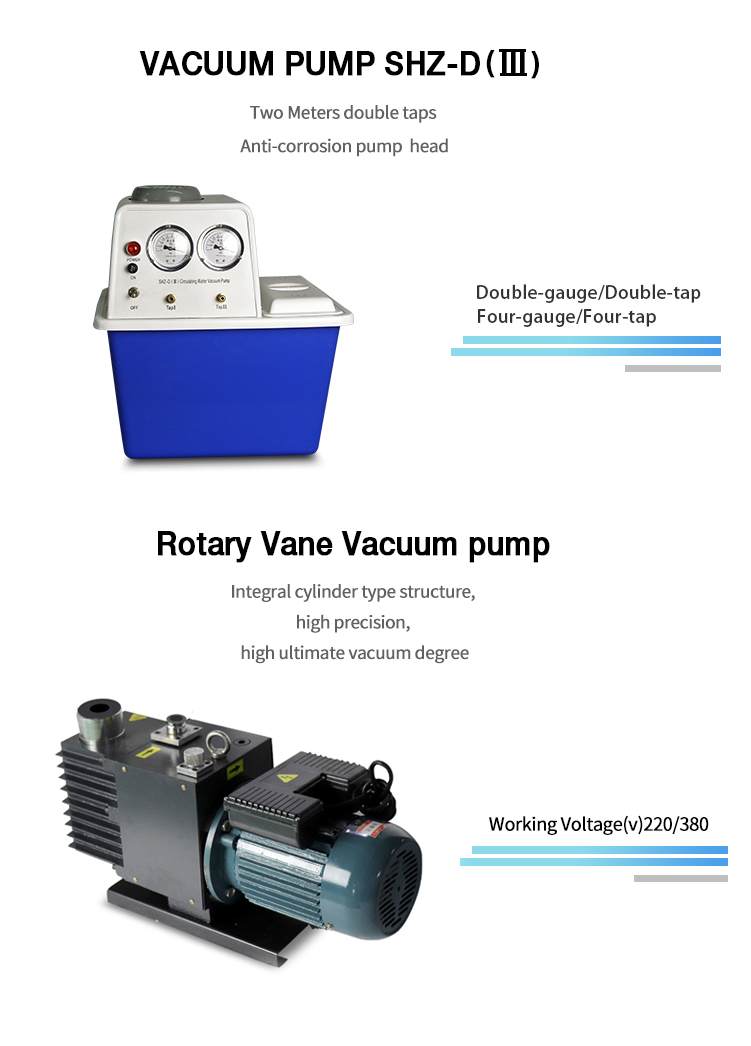

Circulating water type multifunctional vacuum pump

Diaphragm Vacuum Pump

Rotary vane vacuum pump

Low temperature coolant circulation pump

Low temperature constant temperature reaction tank

FAQ:

Precautions for short-path distillation

1. Check whether the cooling water inlet and outlet valves are normally opened and the pressure is normal.

2. Check whether the inlet and outlet valves of the cooling water of each component are in an open state.

3. The equipment is heated by hot oil, the temperature is high, do not touch it with your hands to avoid scalding.

4. Check whether the ethanol in the cryostat is sufficient.

5. Pay attention to whether the liquid nitrogen in the liquid nitrogen tank is sufficient.

6. Check whether the connection between the cold well and the equipment is airtight.

How does short path distillation work?

In a short-path distillation device, a liquid solution or emulsion is suspended in an evaporation flask, which is connected to a condenser or cooling device via a short feed. The evaporation flask is placed in a heating mantle, which gradually raises the temperature of the solution to a predetermined boiling point, thereby promoting the evaporation of the different compartments of the solution.

What is laboratory short-path distillation?

Short-path distillation is a distillation technique that involves a short-distance flow of distillate, usually only a few centimeters, usually under reduced pressure.
