The turnkey short path distillation kit includes vacuum pump, cooling chiller, etc. We provide solutions for short path distillation.

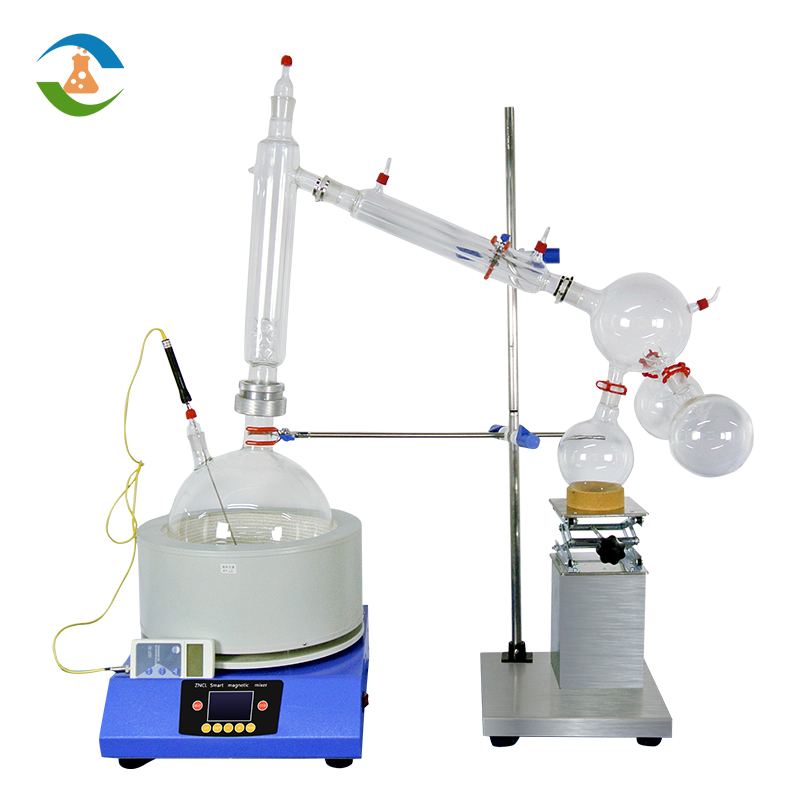

short path distillation:
Short-path distillation is a type of equipment that operates under high vacuum in the distillation method. It consists of heating part (electric heating jacket), evaporating flask, distillation elbow, four-neck flask, receiving flask, cold well and other parts. It is often used in the distillation and extraction of plants such as hemp. It is commonly used equipment in fine chemicals, medical chemistry, laboratories, and food industry.

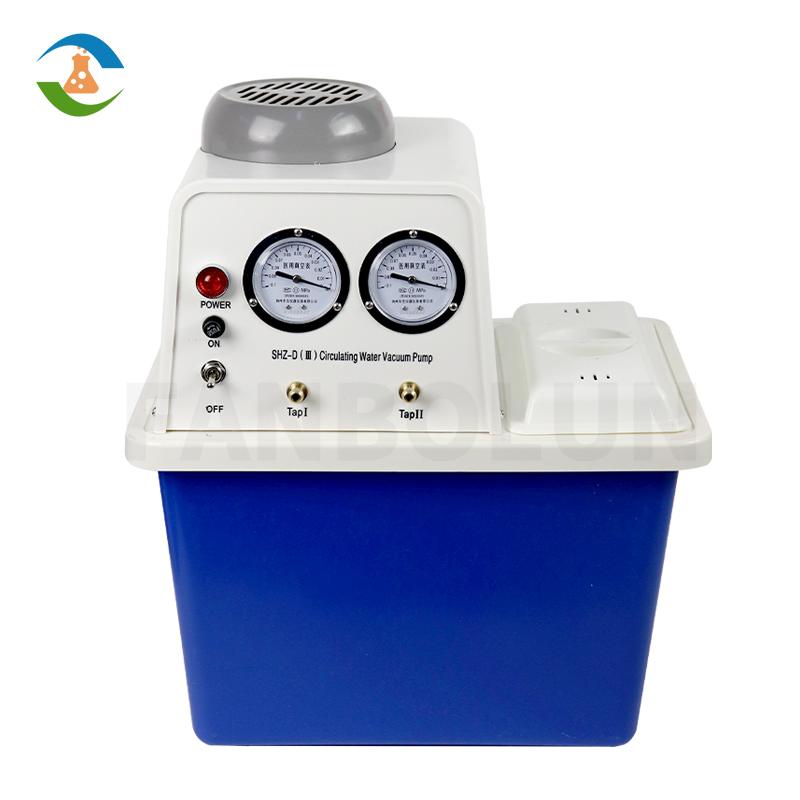

Vacuum pump:
Vacuum pump is a kind of multifunctional laboratory equipment that absorbs by negative pressure. In biological sciences, they are commonly used for filtration, distillation and concentration of volatile solvents, solid phase extraction, freeze drying, etc. The short-path distillation system generally uses a circulating water vacuum pump, which is equipped with an ice hole for adding ice when the water temperature is too high and the vacuum degree is reduced, and it has low noise and can provide a higher vacuum environment.

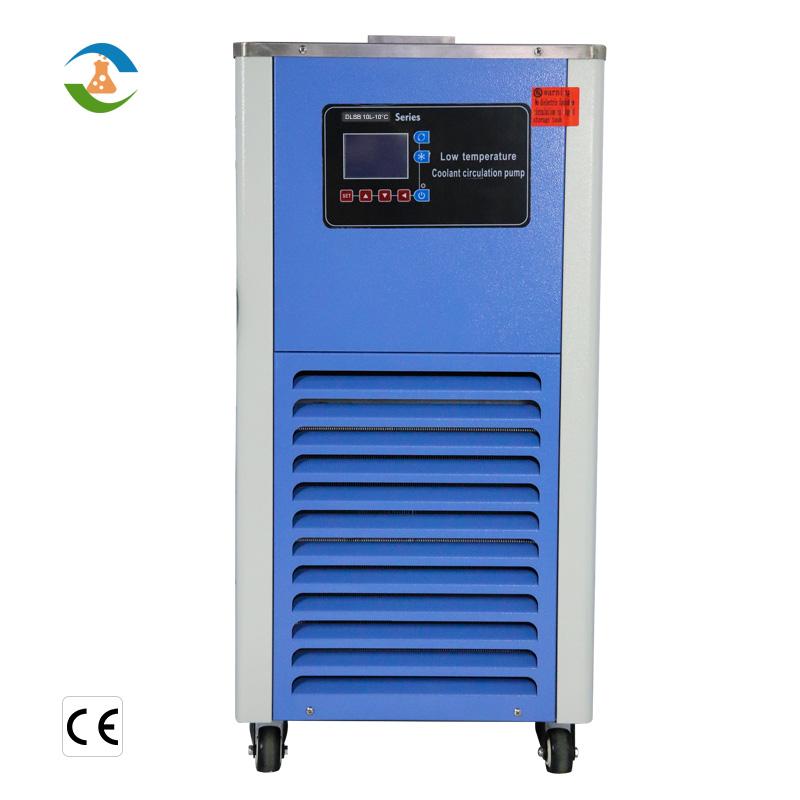

cooling chiller:
The cooling chiller contains three systems: refrigerant circulation system, water circulation system, and electrical automatic control system. It can provide cryogenic liquid for short-path distillation system. All parts in contact with the liquid are made of stainless steel, which is resistant to corrosion, rust and cold. The magnetic stirring at the bottom can drive the magnetic stirring in the tank to make the temperature completely uniform and increase the distance between the magnet and the stirring rod to increase the stirring force.
Advantages of turnkey short path distillation kit:
1.304 stainless steel bracket, firm support.
2. Intelligent speed adjustment, stable rotation.
3. Intelligent temperature control, heating accuracy is ±1°C.
4. The degree of separation is high, molecular distillation can separate out conventional substances that are difficult to separate;
5. The evaporation efficiency is high, and the reflux speed is high.
Parameters of short path distillation kit:
Model |
Parts name |
Parts number |
2000 ml Digital Heating Mantle |
1 |
|
2000 ml 2 Neck Boiling Flask |
1 |
|
Short Path Distillation Head |
1 |
|
Cow Receiver |
1 |
|
500 ml Round Bottom Flasks |
3 |
|
Plastic Keck Clips |
7 |
|
Cast Iron Stand |
1 |
|
Metal Three Finger Clamp |
1 |
|
5000ml Digital Heating Mantle |
1 |
|
5000ml 2 Neck Boiling Flask |
1 |
|
Short Path Distillation Head |
1 |
|
Cow Receiver |
1 |
|
500ml Round Bottom Flasks |
3 |
|
Plastic Keck Clips |
7 |
|
Cast Iron Stand |
1 |
|
Metal Three Finger Clamp |
1 |
|
10000 ml Digital Heating Mantle |
1 |
|
10000 ml 2 Neck Boiling Flask |
1 |
|
Short Path Distillation Head |
1 |
|
Cow Receiver |
1 |
|
2000 ml Round Bottom Flasks |
3 |
|
Plastic Keck Clips |
7 |
|
Cast Iron Stand |
1 |
|
Metal Three Finger Clamp |
1 |
|
20000 ml Digital Heating Mantle |
1 |
|
20000 ml 2 Neck Boiling Flask |
1 |
|
Short Path Distillation Head |
1 |
|
Cow Receiver |
1 |
|
3000 ml Round Bottom Flasks |
3 |
|
Plastic Keck Clips |
7 |
|
Cast Iron Stand |
1 |
