Advantages of blast drying oven:

DHG-9070 blast drying oven is widely used in industrial and mining enterprises, medical and health, medicine, biology, agriculture, chemical industry, environmental protection, scientific research units and other industries. It can bake, dry, dissolve, and disinfect materials.

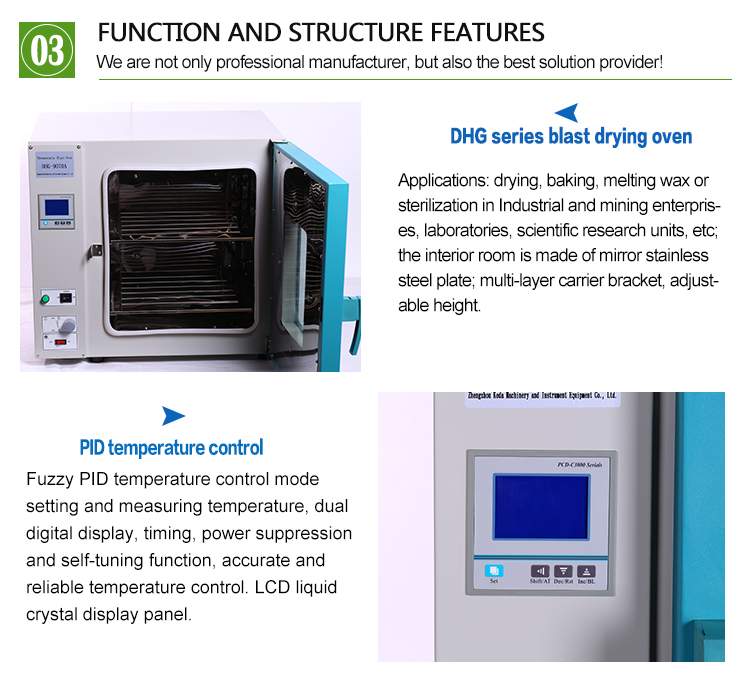

Features of blast drying oven:

1. The working room made of stainless steel is beautiful and easy to clean

2. Double-layer tempered bulletproof glass door, easy to observe the reacting material.

3. The working room made of 304 stainless steel is not easy to rust.

4. The temperature in the working room is more uniform.

5. The new type of silicone gasket has a long service life under high temperature and is easy to replace.

6. With temperature calibration, timing and alarm functions.

After-sales service:

1. Provide targeted installation videos;

2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;

3. After the expiration of the warranty period, the products sold by our company enjoy lifetime warranty repairs, and we only charge the cost price for replacing the standard parts and seals of the product;

4. The technical staff puts forward reasonable suggestions according to the use of the product, and assists the customer to choose the appropriate model;

5. Provide 24-hour technical consultation response.

Grouped equipment:

Diaphragm Vacuum Pump

Rotary vane vacuum pump

FAQ:

What are the basic structures of the blast drying oven?

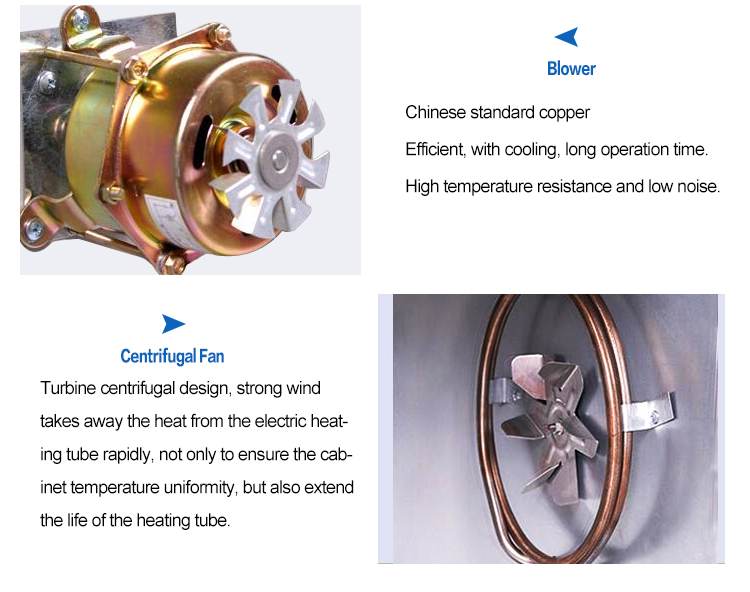

Heat source, fan, air duct and temperature control system.

What is the basic principle of the blast drying oven?

The hot air is blown out by the circulating fan to ensure the temperature balance in the drying box.

What is the reason why the temperature of the blast drying oven does not rise?

The set temperature is too low, the wiring of the thermometer output circuit is closed, the temperature controller has no output signal is bad, the heater is damaged, the timer is activated, or the setting is incorrect.

What is the principle of the blast drying oven?

When the hot air in the drying room heats the material, the moisture will become water vapor and mixed into the hot air, the air in the box is convectively circulated through the fan, and then the hot air with water vapor is discharged through the exhaust hole, and the air intake hole sucks in the air outside the box. Into the heating cycle inside the box, through the continuous exchange of indoor and outdoor air, moisture is also taken out of the box, so as to achieve the purpose of drying. The amount of air exchange inside and outside the box can be adjusted by changing the size of the air holes.
