Advantages of microwave chemical reactor:

The microwave chemical reactor can control the temperature of the microwave, and can adjust the timing function and power. It has functions such as over-temperature protection and sensor abnormality protection. The inner shell is made of stainless steel, which is durable, reliable and safe.

Features of microwave chemical reactor:

1. Safe interlock switch. Open the oven door under any circumstances to stop the microwave output. Equipped with protective gas inlet.

2. Imported high-precision vacuum deposition sputtering thin-film platinum resistance, its performance is better than ordinary winding platinum resistance.

3. Open reaction system, can add standard reaction vessel (volume 10-500ml) and condensing reflux, dripping, liquid replenishment and water separation devices at will according to the reaction conditions.

4. Using adaptive PID adjustment technology: effectively overcome the occurrence of overshoot.

5. The contact type tetrafluoroethylene temperature sensor can detect the internal temperature of the reaction system. The temperature measurement accuracy is 0.2, and the temperature control accuracy is less than ±1℃. The temperature control range is 0-250℃, and it has the function of temperature error correction.

6. The continuous microwave output mode ensures that there is microwave at all times during the experiment.

After-sales service:

1. Provide targeted installation videos;

2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;

3. After the expiration of the warranty period, the products sold by our company enjoy lifetime warranty repairs, and we only charge the cost price for replacing the standard parts and seals of the product;

4. The technical staff puts forward reasonable suggestions according to the use of the product, and assists the customer to choose the appropriate model;

5. Provide 24-hour technical consultation response.

FAQ:

What are the power requirements for microwave chemical reactors?

The ideal power supply is a regulated power supply. If there is no regulated power supply, there should be a dedicated power supply line, not collinear with other large equipment. The circuit must be well grounded. Use a fuse above 8A. To

The principle of microwave heating:

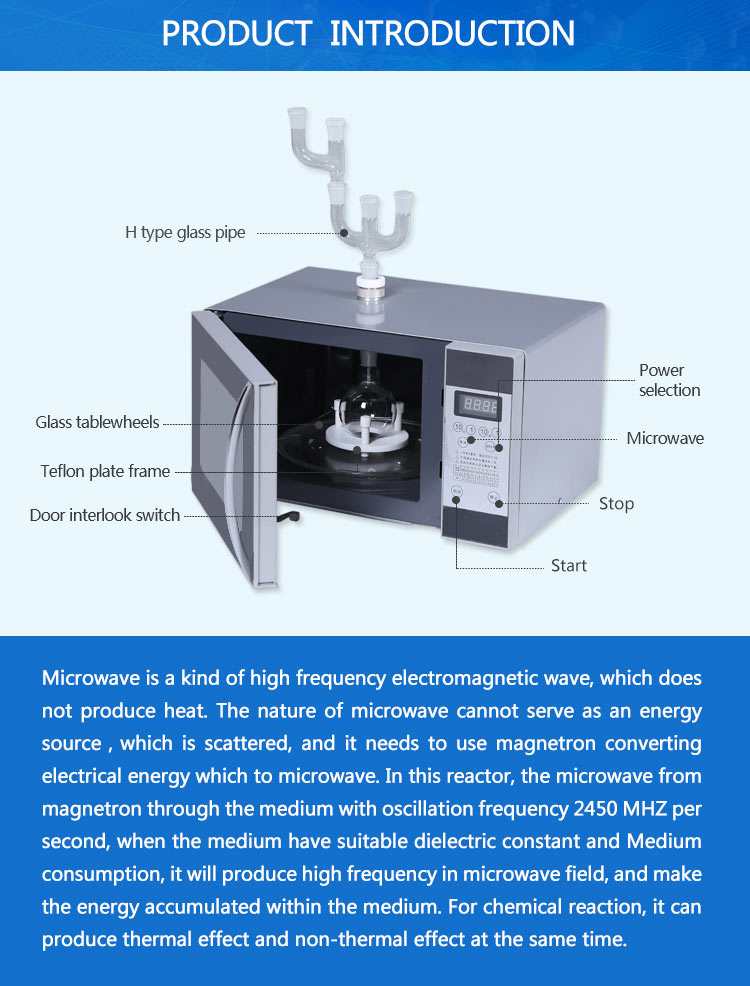

Microwave heating is the use of microwaves as an energy source. When microwaves interact with material molecules, they produce molecular polarization, orientation, friction, collision, and absorption of microwave energy to produce thermal effects. This heating method is called microwave heating. Microwave heating means that the object heats itself after absorbing microwaves. The heating starts from the inside and outside of the object at the same time, which can be heated at the same time.

Different materials have different ability to absorb microwaves, and their heating effects are also different, which mainly depends on the dielectric loss of the material.

Technical parameters of microwave chemical reactor:

Input power: 1350W

Microwave power: ≤800W (0-800 continuous and automatic adjustable)

Microwave frequency: 2450MHz±50Hz

Temperature control: working temperature 250℃

Temperature control accuracy: ≤1℃

Operating procedure: 5 operating steps can be set for each experiment. Each step can be set individually

Power: (10%-100%)

Temperature: (room temperature-250℃)

Time: The time can be set to 5×999 seconds
