Advantages of microwave chemical reactor:

The microwave chemical reactor has brought a great impact to the field of chemistry, especially the field of organic synthesis. Microwave chemical reactors are used in organic synthesis reactions, and the reaction speed is thousands of times faster than conventional methods. And can synthesize substances that are difficult to synthesize by conventional methods. It is widely used in materials, pharmacy, chemical industry and related teaching and scientific research fields.

Features of microwave chemical reactor:

1. Two control modes: constant temperature control mode and constant power control mode.

2. Microwave power: 0-750 continuously and automatically adjustable.

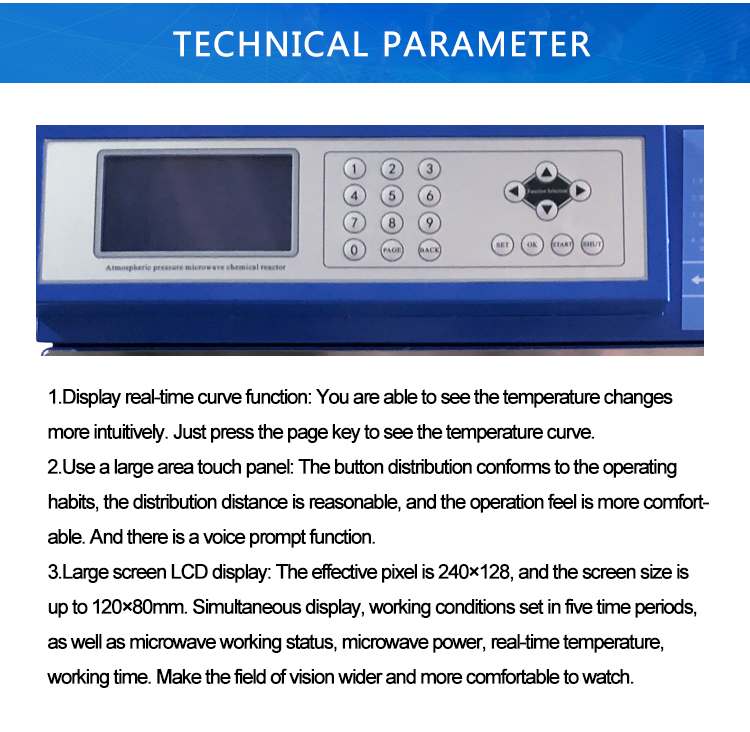

3. Large-screen LCD display: screen size 120×80mm, three-screen display, five-stage reaction conditions, temperature curve, 4. temperature correction. Real-time display: reaction temperature, reaction time, power usage.

5. Adaptive PID temperature adjustment technology, suitable for temperature control under different mathematical models.

6. Built-in magnetic stirrer, the stirring speed is steplessly adjustable.

After-sales service:

1. Provide targeted installation videos;

2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;

3. After the expiration of the warranty period, the products sold by our company enjoy lifetime warranty repairs, and we only charge the cost price for replacing the standard parts and seals of the product;

4. The technical staff puts forward reasonable suggestions according to the use of the product, and assists the customer to choose the appropriate model;

5. Provide 24-hour technical consultation response.

FAQ:

What is the principle of microwave heating?

Microwave heating is the use of microwaves as an energy source. When microwaves interact with material molecules, they produce molecular polarization, orientation, friction, collision, and absorption of microwave energy to produce thermal effects. This heating method is called microwave heating.

MCR-3 microwave chemical reactor configuration list:

One host of MCR-3 microwave chemical reactor

One PTFE-plated temperature sensor

A 5x8 silicone tube for ventilation (2 meters)

Two power fuse (10A delay)

One high-voltage fuse (5000V0.8A)

One PTFE thermometer casing and one PTFE filling plug

2 8X1.9 fluorine rubber sealing rings

One glass single port, two port and three port connectors.

A copy of the instruction manual

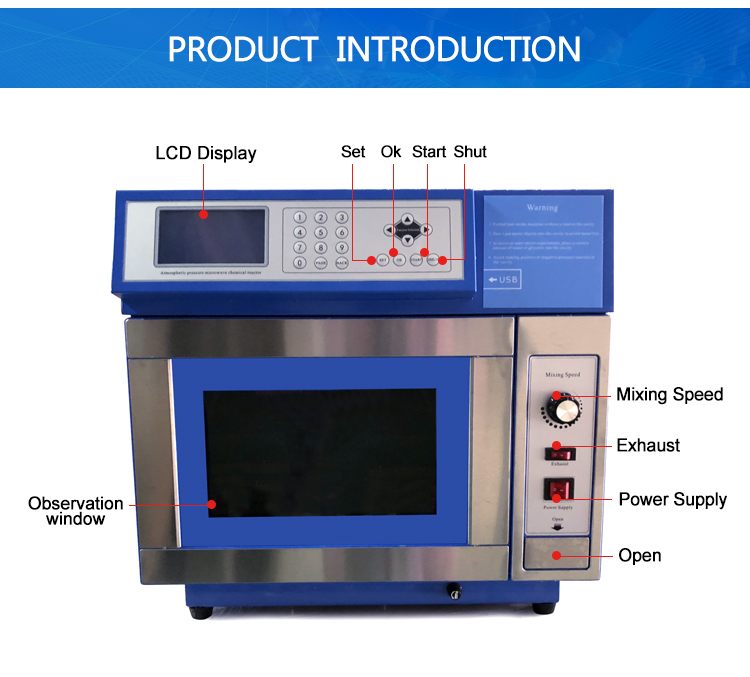

How to control the magnetic stirrer in the microwave chemical reactor?

The magnetic stirrer is controlled individually and not controlled by a microcomputer. Turn the knob on the right side of the microwave chemical reactor door clockwise, the speed of the magnetic stirrer will increase, and vice versa.
