Advantages of vacuum filter machine:

Vacuum filter is mainly used for liquid-liquid extraction. Widely used in scientific research on biochemical drugs, sanitary testing, environmental testing, water quality analysis, food, beverage and liquid preliminary filters.

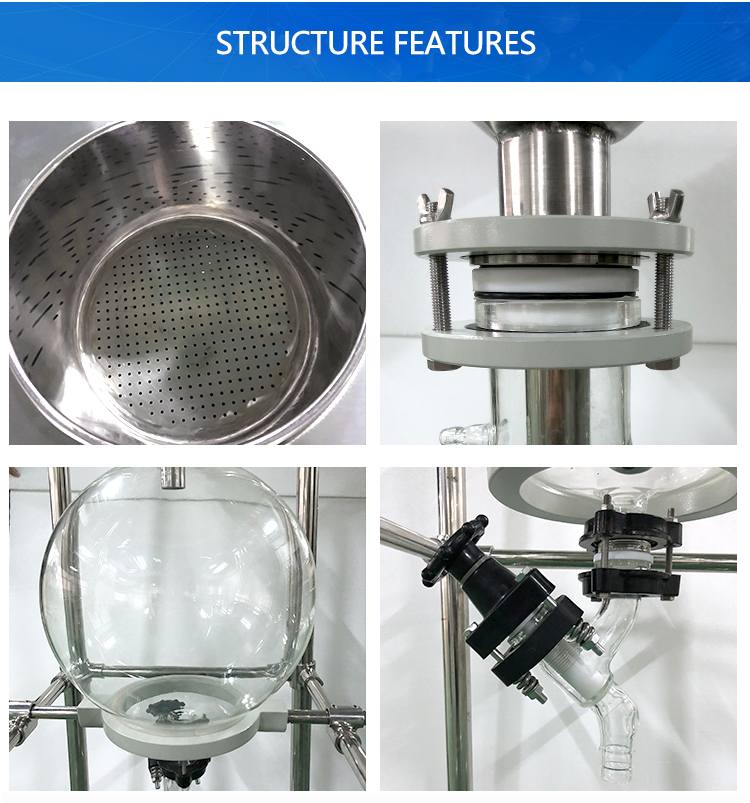

Features of vacuum filter machine:

1. The suction filter bottle is made of GG17 high borosilicate glass, which has excellent chemical and physical properties.

2. The stainless steel funnel is not easy to rust, high temperature resistance, and corrosion resistance.

3. The mixing plug designed with special PTFE material has perfect technology, high corrosion resistance and high cost performance.

4. The lower discharge port is equipped with a specially designed PTFE valve with a glass flange. There is no dead corner in the container, it can be disassembled to facilitate the discharge of solid materials.

5. The whole machine has good sealing performance, and the static negative pressure can reach below 0.095MPa.

6. The whole machine structure is scientific. The frame is made of 304 stainless steel and has casters for easy movement.

After-sales service:

1. Provide targeted installation videos;

2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;

3. After the expiration of the warranty period, the products sold by our company enjoy life-long warranty maintenance, and we only charge the cost price of replacing the standard parts and seals of the product;

4. The technical staff puts forward reasonable suggestions according to the use of the product, and assists the customer to choose the appropriate model;

5. Provide 24-hour technical consultation response.

FAQ:

How to clean the parts when using the vacuum filter?

1. Check the stainless steel funnel frequently, clean up the attached dirt in time, find and eliminate the trend of local pollution in time.

2. Frequently check the fasteners connecting the stainless steel funnel and the suction filter bottle. If they are loose, they must be tightened in time. If welding cracks or deformation of components occur, contact the technicians for maintenance in time, and clean up the external dirt after the operation to prevent corrosion.

3. Remove the sundries on the outside of the suction filter bottle below and in the bottle in time, pay attention to protective measures to prevent collisions and cause unnecessary damage, and do a good job of protection after the operation.

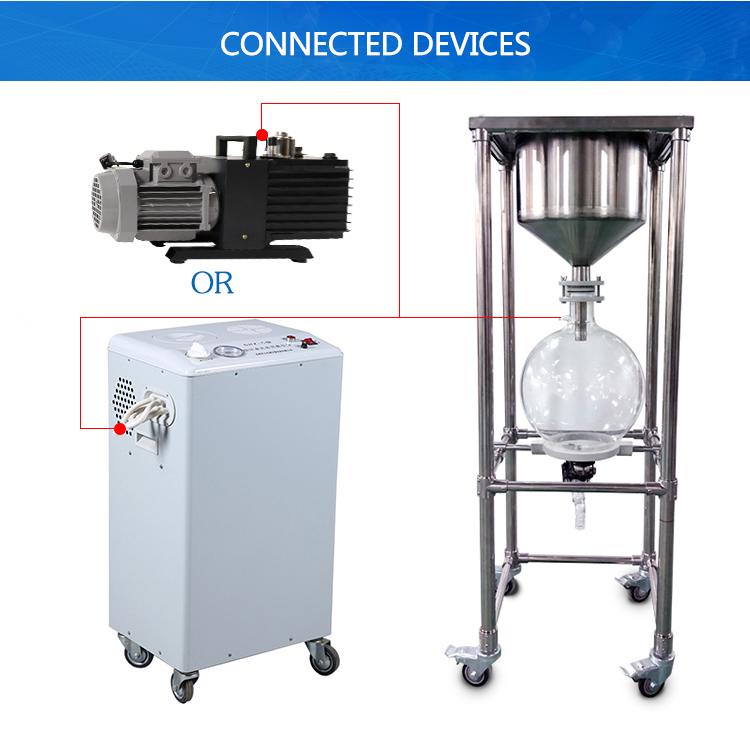

4. The circulating water vacuum pump connected to the suction filter should be turned off in time after operation, otherwise the internal parts of the machine will be damaged and the casing will be damaged.

How does the vacuum filter work?

The vacuum suction filter forms negative pressure at the outlet of the filtrate as the driving force for filtration. This filter is divided into two types: intermittent operation and continuous operation. The intermittent operation vacuum filter can filter suspensions of various concentrations and operate continuously. The vacuum filter is suitable for filtering thick suspensions containing more solid particles.

3. What is the purpose of the vacuum filter?

The vacuum filter uses the suction power of a vacuum pump to filter. The vacuum filter is made of 304, 316 stainless steel; the thickened glass bottle, glass bottle and stainless steel funnel are sealed by PTFE. The vacuum filter is widely used in pharmaceuticals, petroleum, chemical, electric power metallurgy, mining, agriculture, etc.
