It's well-known that evaporation is a course by which a liquid turns into fuel or vapor beneath its boiling level occurring on the surface of the liquid. The tools used for evaporation are called evaporators. An evaporator normally consists of a heat exchanger, a vacuum pump, a vapor separator, and a condenser. Equipment Used for Evaporation There are a great variety of kinds of evaporators, and four forms of them might be mainly introduced, which are rotary evaporators, falling film evaporators, single-effect external circulation evaporators, and skinny film evaporators.
1. Rotary Evaporators

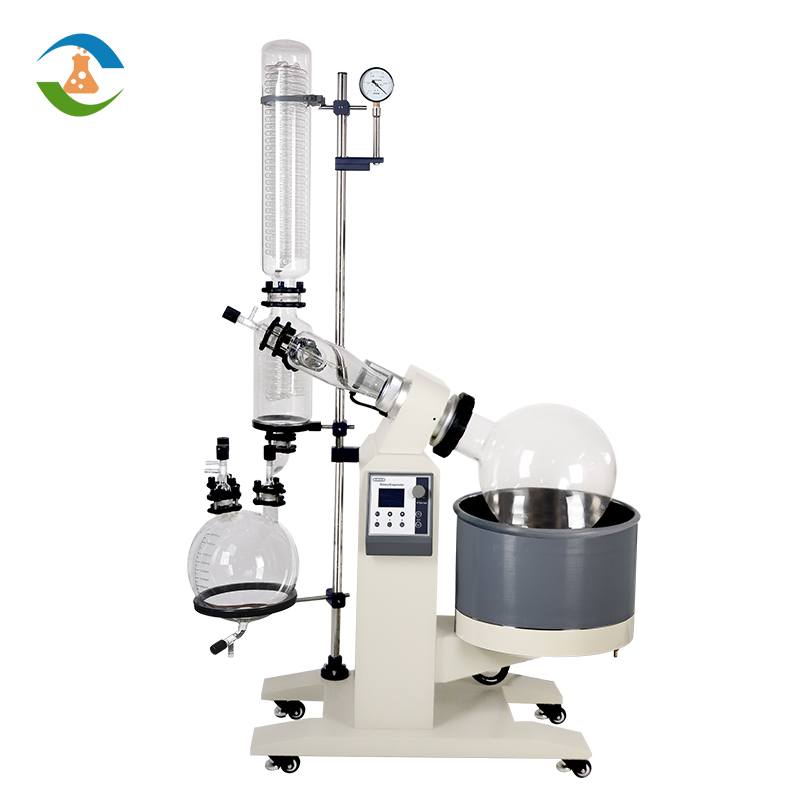

A rotary evaporator, generally recognized as rotovap as well, is a vital evaporation gear broadly utilized in many fields corresponding to industrial subjects, chemical laboratories, and other fields. A rotary evaporator normally consists of several elements, including a motor unit, a vacuum system, a water or oil bath for heating, a rotating flask, a receiving flask, condenser pipes, and different elements. The rotating flask is heated thermostatically and may rotate at a constant speed. Then the fabric varieties a big area of thin film on the internal surface of the flask, which has a higher evaporation effectivity. The receiving flask can gather the distilling solvent after it recondenses. In conclusion, a rotary evaporator serves as an important evaporation tool, which might remove an unstable solvent from a liquid combination via evaporation and condensation.
2. Falling Film Evaporators
A falling film evaporator is an essential evaporation tool, which is relevant for the evaporation and concentration of the foaming material. A falling film evaporator system primarily consists of a number of elements. The first half is the evaporator (the heat exchanger), which is used to warm and evaporate liquid materials. The second part is the separator, primarily used to separate the concentrated liquid and the secondary steam generated after heating. The third part is the preheater, which is used to preheat liquid supplies coming into the steam and cool the secondary steam in order to recycle and put it to use. The fourth part is the condenser, whose operate is to condense the secondary steam in order that it can be recycled and utilized. The fifth part is the condensate tank, which is related to the pump on the outlet and capable of discharging condensate liquid automatically.
3. Single-Effect External Circulation Evaporators

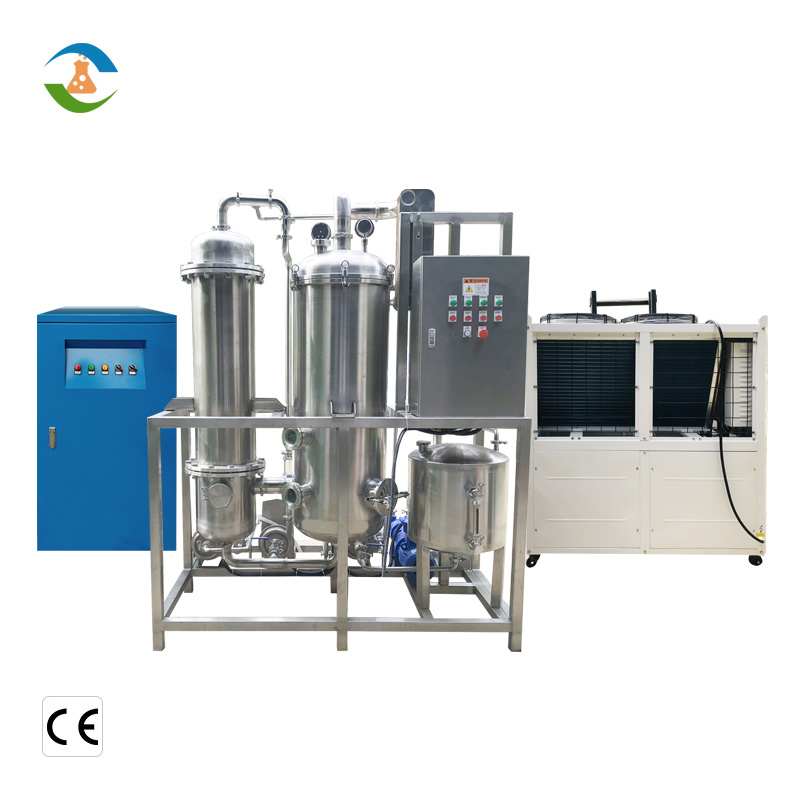

As an efficient evaporation tool, a single-effect external circulation evaporator adopts each the natural circulation of external heating technique and the vacuum adverse strain evaporation method, possessing a fast evaporation velocity. It's broadly used for the recovery of ethanol and the focus of various liquids.
It boils the feed liquid, removes the vaporized half, and concentrates the feed liquid via heating the materials under unfavorable strain. In the heating chamber, the heating vitality required for evaporation is provided to the liquid, and the fabric liquid is evaporated to a kinda density difference. The density of the fabric liquid within the circulation pipe is higher than that within the heating chamber so that the natural circulation is formed by the density difference of the fabric liquid. The steam generated in the heating chamber carries an appreciable quantity of liquid foam. After passing by way of the larger house evaporation chamber, the liquid foam is separated by the use of its own condensation and foam trapping gadget. The steam is recovered after cooling and condensation.
