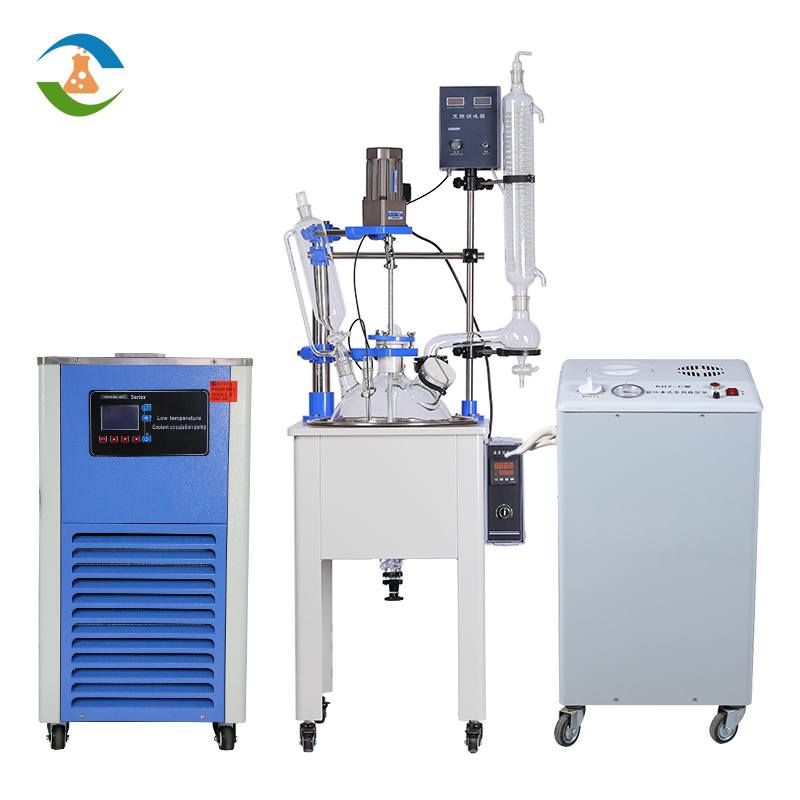

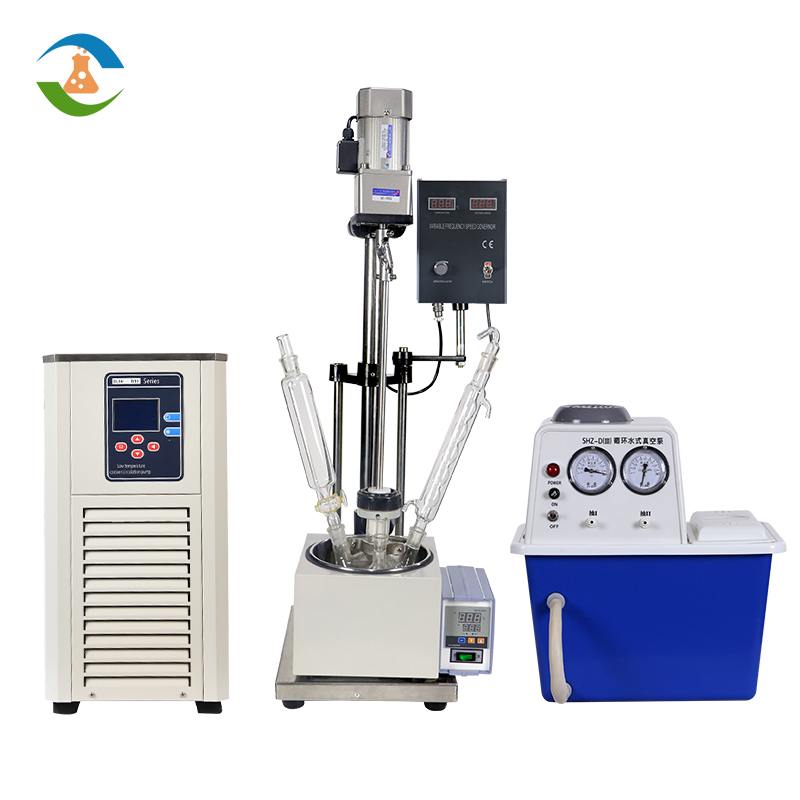

The single-layer glass reactor vessels are highly efficient, stable, beautiful, and durable. The single-layer glass reactor is a multifunctional reactor, which can carry out various biochemical synthesis reactions under constant temperature conditions and can also be refluxed or distilled at different temperatures.
Single-layer glass reactor vessels is an important instrument and equipment for biology, medicine and chemical industry, food industry and scientific research and production. It can be used as a system device with a multi-purpose vacuum pump for circulating water, a low-temperature coolant circulating pump, and a circulating oil bath.
The working principle of single-layer glass reactor vessels:
The reactor body is directly heated by the heating device so that the materials in the reactor can be heated at a constant temperature, and stirring can be provided. The materials are reacted in the reactor, and the evaporation and reflux of the reaction solution can be controlled. After the reaction is completed, the lid and motor part of the single-layer glass reaction kettle are mechanically lifted (electric lift is optional), and the kettle body can be rotated 360 degrees to facilitate the dumping and discharging of materials, and the operation is extremely convenient. It is an ideal equipment for modern chemical sample, medium sample experiment, biopharmaceutical and new material synthesis.
Features of single-layer glass reactor:
1. The single-layer glass reactor uses borosilicate glass, which has excellent materials and chemical properties. In the mixing process of variable frequency speed regulation, it will run more smoothly, and no spark will be generated even if the torque is large.
2. The components are sealed with tetrafluoroethylene, which can maintain a good vacuum degree (usually around -0.095mpa).
3. Mechanical seal, PTFE connection port, high-precision seal kept in working condition.
4. The Pt100 sensor probe has high-temperature measurement accuracy and small error, which effectively improves work efficiency.
5. Teflon discharge valve, movable interface, complete and quick discharge.
6. Strong torque, no noise. Adopt AC gear reducer motor.
7. The double PTFE stirring paddle of the glass reactor is suitable for the stirring and mixing of low to high viscosity liquids.
