Advantages of low temperature cooling liquid circulating pump:
The low temperature cooling liquid circulating pump can provide low temperature liquid for double-layer glass reactors and other equipment. It can also be combined with rotary evaporators, vacuum freeze drying ovens, circulating water vacuum pumps, magnetic stirrers and other instruments to perform multi-functional chemical reactions at low temperatures and Drug storage.
Features of low temperature cooling liquid circulating pump:
1. Easy to use and can work continuously.

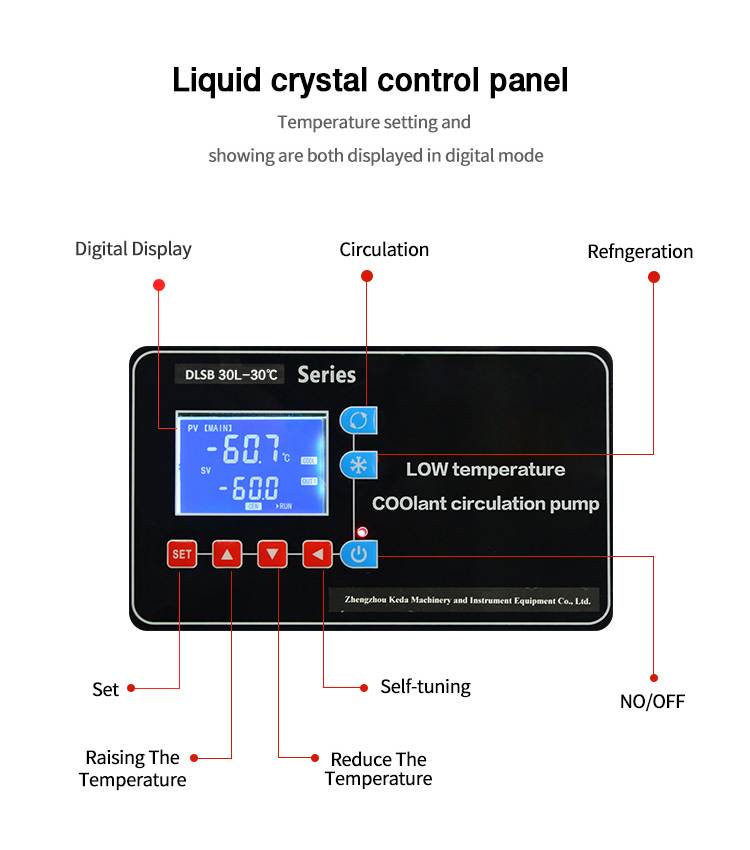

2. Temperature digital setting and display, convenient and simple operation.
3. Support OEM, appearance, panel, capacity and temperature can be customized.
4. Ethanol can be used as a small-capacity cooling medium.
5. Explosion-proof models are available.

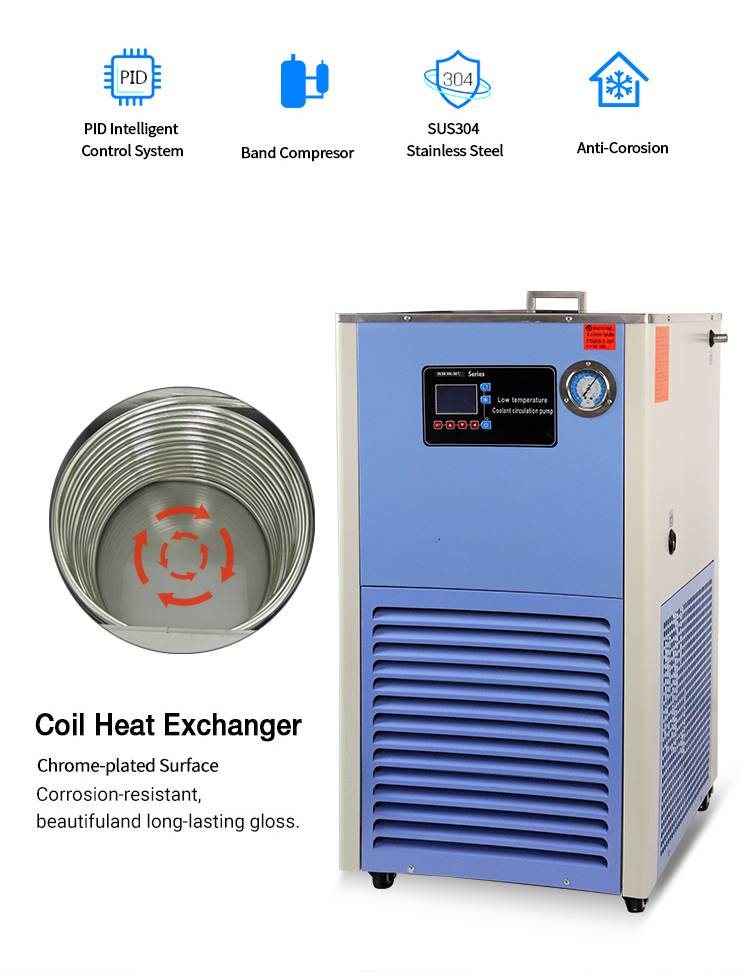

6. The evaporator adopts 304 coil type evaporator, which has high heat exchange efficiency; the evaporator is built in the liquid storage tank, and the evaporator will not be damaged when the refrigerant is frozen, which is safe and reliable.
7. The circulating pump adopts all stainless steel low-temperature resistant canned motor pump, which has no leakage at low temperature. The circulating pipeline adopts AUS304, which is anti-corrosion and anti-pollution.
After-sales service:
1. Provide targeted installation videos;
2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;
3. After the expiration of the warranty period, the products sold by our company enjoy lifetime warranty repairs, and we only charge the cost price for replacing the standard parts and seals of the product;
4. The technical staff puts forward reasonable suggestions according to the use of the product, and assists the customer to choose the appropriate model;
5. Provide 24-hour technical consultation response.
FAQ:
What is the working principle of the cryogenic coolant circulation pump?
Cryogenic coolant circulation pump is a kind of coolant equipment that can provide constant temperature, constant flow and constant pressure. Its working principle is to first inject a certain amount of liquid into the water tank in the machine, cool the liquid through the refrigeration system, and then send the low-temperature coolant to the equipment to be cooled by the water pump. After the low-temperature coolant takes away the heat, the temperature will increase and Return to the water tank to achieve cooling.
Compressor power of cryogenic coolant circulation pump:
The voltage and power of the DLSB chiller can be customized, and the stability is better for different power supply voltages used in different countries. The compressor is also equipped with overload and overheat protection. If such a situation occurs, the safety of personnel and equipment can be better protected.
What are the unique functions of the cryogenic coolant circulation pump?
All parts in contact with the liquid are made of stainless steel, which is resistant to corrosion, rust and cold. The magnetic stirring at the bottom can drive the magnetic stirring in the tank to make the temperature completely uniform and increase the distance between the magnet and the stirring rod to increase the stirring force.
Model | DLSB-30/30 | |
Volume(L) | 39.3 | |
No Load Min. Temp. (℃) | -30 | |
Environment Humidity(％) | ≤70 | |
Power Supply(Single phase)(V/HZ) | 220/50 | |
Temp. Precision（℃） | ±2 | |
Cooling Capacity(W) | 10℃ | 2722 |
0℃ | 2178 | |
-10℃ | 1452 | |
-20℃ | 907 | |
-30℃ | 363 | |
Total Power(W) | 1950 | |
Total Current(A) | 9.2 | |
Refrigerant | R404A | |
Circulating Pump | Power（W） | 100 |
Flow(L/min) | 20 | |
Lift(m) | 6 | |
Open Size（mm） | 310×310 | |
Liquid tank（mm） | 340×340×340 | |
Total Demension（mm） | 660×515×985 | |
Weight(Kg) | 89 | |
Fuse | - | |
