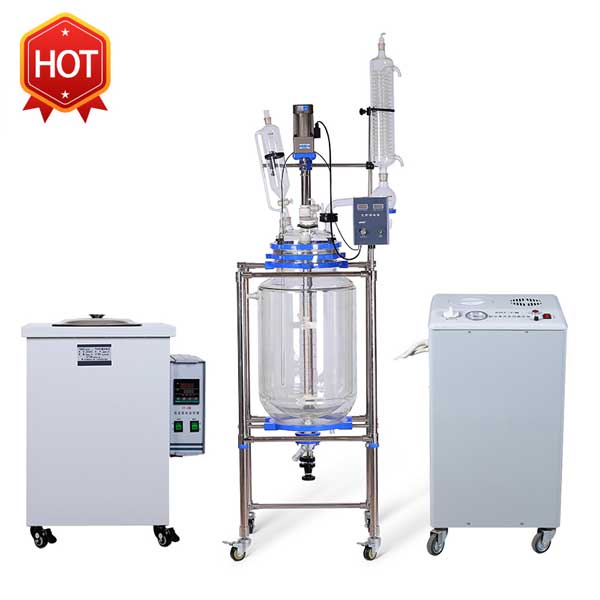

Double Layer Glass Chemical Reactor Agitated Principle:
The 1l jacketed reacto , 20l glass reactor and jacketed glass reactor 100l are the most well-liked models of our firm. Next I will introduce these products to you. The inner layer of double layer glass chemical reactor agitated is positioned with a response solvent for stirring reaction. The interlayer circulates via the chilly and warmth supply, and the Glass Reactor interlayer can provide high-temperature response (high temperature can reach 200℃). We can place the response solvent in the middle of the interlayer, by stirring the response under normal pressure or adverse strain; jacketed glass reactor 100l is a continuing temperature (high temperature or low temperature) scorching solution or cooling liquid by way of the interlayer of the reactor, and the response kettle The material inside is heated or refrigerated at a relentless temperature, and stirring can be offered. In this way, the medium within the interlayer of the glass reactor (such as freezing liquid, heating water or heating oil, etc.) is heated or cooled by stirring to carry out a cyclic reaction. It is broadly used as a super system in fashionable biochemical new materials synthesis experiments.
Features Double Layer Glass Chemical Reactor Agitated:
1. Made of high borosilicate glass materials (GG17), with good chemical and physical properties.
2. It can be utilized in high-temperature range from 200℃ to low temperature -80℃.
3. The surface of the bracket is sprayed with Teflon, which is corrosion-resistant and maintains the aesthetics and service lifetime of the whole machine. (Also optionally available spray).
4. Advanced frequency conversion velocity regulation, frequency conversion controller, internal components have vacuum coating protection, corrosion resistance, elective full explosion-proof, safe and reliable.
5. The kettle body has two layers, and the heat supply and cooling liquid are used in the course of the interlayer to supply the needs for the response. The internal layer is the vacuum interlayer kettle physique for heat preservation, and the second interlayer offers heat and chilly satisfaction for the reflection. The totally transparent reaction bottle can make the response course of clear at a glance.
6. Polytetrafluoroethylene (PTFE) components are sealed and specially designed to take care of the vacuum diploma of comparable merchandise available within the market (about -0.098mpa), and the discharge valve can discharge concentrated liquid and hint stable materials.
7. The jacket strain control system is the corporate's new technology for the protection of the kettle body, which makes the work secure and dependable.
8. The kettle cavity and jacket are designed to have no useless angle, anti-corrosion, and no pollution structure.
9. After the response is over, the heat transfer medium can be utterly eliminated without effusion.
10. The whole machine construction of this product is scientific, lovely and practical.
Instructions For Use And Installation Of Double Layer Glass Chemical Reactor Agitated:
Instructions to be used of jacketed glass reactor 100l agitated :
1. The energy supply voltage is in maintaining with that specified by the instrument.
2. No-load operation is not appropriate for high-speed operation
3. Please keep the speed regulation and motor dry.
4. Install the machine first and then wire it to an electrician. The floor terminal must be grounded, and the high-temperature tub is connected to the air change.
6. When working, take observe of the influence damage to the glass by exhausting objects (watches, rings, belt buckles, etc.) on the body.
7. Be careful when connecting the vacuum pipe and water pipe, so as not to damage the human physique by breaking the glass with excessive drive.
8. When it is necessary to make use of a high-temperature circulating oil tub, pay consideration to the injury to the human body attributable to high temperature.
Installation of jacketed glass reactor 100l :
(Only for the response kettle below 5L, outfitted with special personnel for set up above 5L)
1. After opening the package deal, examine whether or not the principle accessories of the machine are full in accordance with the packing list.
2. Assemble the body with the stainless-steel tube and the fixing components as shown in the connected image.
three. Install the electrical box on the best rear pole, tighten the screws, and insert the seven-pin plug. The vacuum gauge is put in on the left rear finish, just tighten the screw.
four. According to the peak of use, fix the round bracket of the kettle on the vertical rod slider, put the kettle on the bracket, and use the semi-circular hoop to repair the neck of the kettle and insert it into the vertical rod slider respectively, and then tighten the fixing screws after closing. When putting in, notice that the primary body of the reactor is vertical.
5. The stirring rod is fixed on the gear ring chuck of the principle shaft of the motor, and the stirring rod passes through the center of the duvet to rotate the bearing, tighten the connector, and then regulate the position of the motor, paying consideration to the vertical concentricity.
6. The slider on the pole is a chrome steel multi-purpose clip that e mounted and adjusted in different directions and heights.
7. The 40# commonplace port on the left facet of the bottle cap is inserted into a snake-type reflux condenser, the proper 40# commonplace port is the feeding port to attach the constant strain funnel, the 24# normal port within the middle and front is the thermometer sleeve port, and the again of the cap is the 34# standard port It is a multi-function spare port, with a discharge valve at the backside, and the upper and lower components of the kettle are the inlet and outlet of the circulating liquid. The lower port is connected to the circulating liquid inlet, and the higher half is linked to the circulating liquid return port.
8. Clean when installing glass instruments, apply Vaseline to each interface to stop the glass from locking, after which apply vacuum grease to stop air leakage.
9. Press the universal wheel fixing device to stir, if the stirring is stable, it implies that the debugging has been completed.
Jacketed glass reactor for sale:

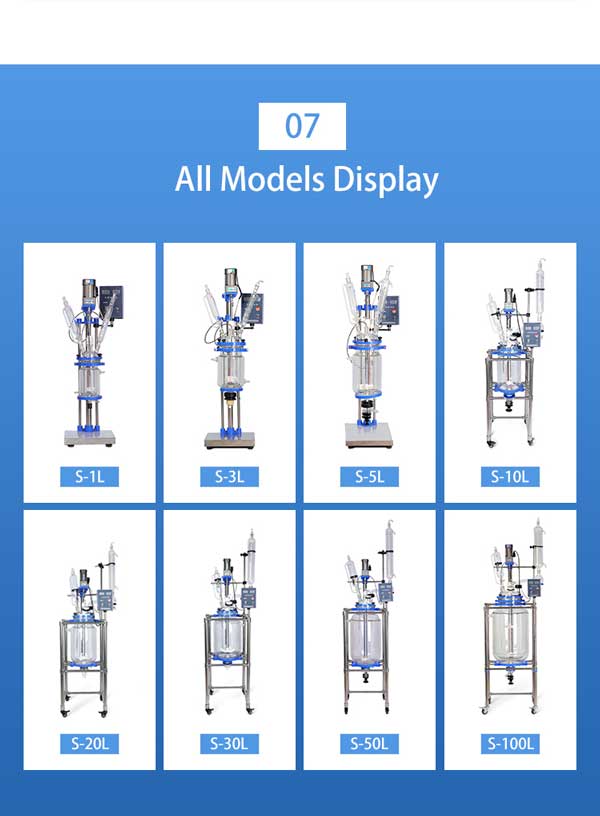

We are one of many jacketed glass reactor manufacturers in China. The primary capability of double layer glass chemical reactor agitated bought by our company is 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L. If you feel like you need more information relating to double layer glass chemical reactor agitated or are hoping to get in touch with us, you'll find a way to contact us on the website. We're always pleased to help.
